NCP13992AFDR2G

Enlarger

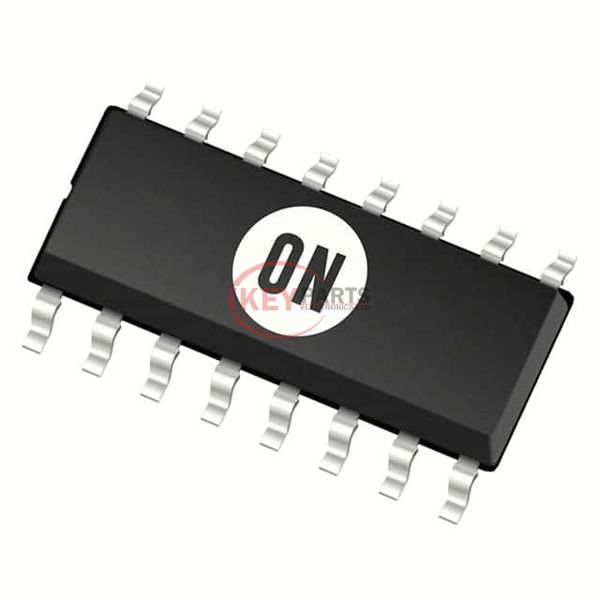

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NCP13992AFDR2G

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NCP13992AFDR2G
Description
IC CTLR HALF BRIDGE RES 16SOIC
Catalog
PMIC - AC DC Converters, Offline Switchers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NCP13992AFDR2G PDF
In Stock
530
NCP13992AFDR2G Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
Output IsolationIsolated
Internal Switch(s)No
Voltage - Breakdown-
TopologyHalf-Bridge
Voltage - Start Up9 V
Voltage - Supply (Vcc/Vdd)9.5V ~ 20V
Duty Cycle50%
Frequency - Switching20kHz ~ 750kHz
Power (Watts)-
Fault ProtectionCurrent Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit
Control FeaturesEN, Frequency Control, Soft Start, Sync
Operating Temperature-50°C ~ 150°C (TJ)
Package / Case16-SOIC (0.154", 3.90mm Width), 14 Leads
Supplier Device Package16-SOIC
Mounting TypeSurface Mount
Request Quote Now
Request Quote Now

We can supply NCP13992AFDR2G, use the request quote form to request NCP13992AFDR2G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NCP13992AFDR2G. The price and lead time for NCP13992AFDR2G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NCP13992AFDR2G. We look forward to working with you to establish long-term relations of cooperation.
