Series | TinySwitch®-II | |
Package | Tape & Reel (TR)Cut Tape (CT) | |
Part Status | Not For New Designs | |
Output Isolation | Isolated | |
Internal Switch(s) | Yes | |
Voltage - Breakdown | 700V | |
Topology | Flyback | |
Voltage - Start Up | - | |
Voltage - Supply (Vcc/Vdd) | - | |
Duty Cycle | 65% | |
Frequency - Switching | 132kHz | |
Power (Watts) | 15 W | |
Fault Protection | Current Limiting, Open Loop, Over Temperature, Short Circuit | |
Control Features | EN | |
Operating Temperature | -40°C ~ 150°C (TJ) | |

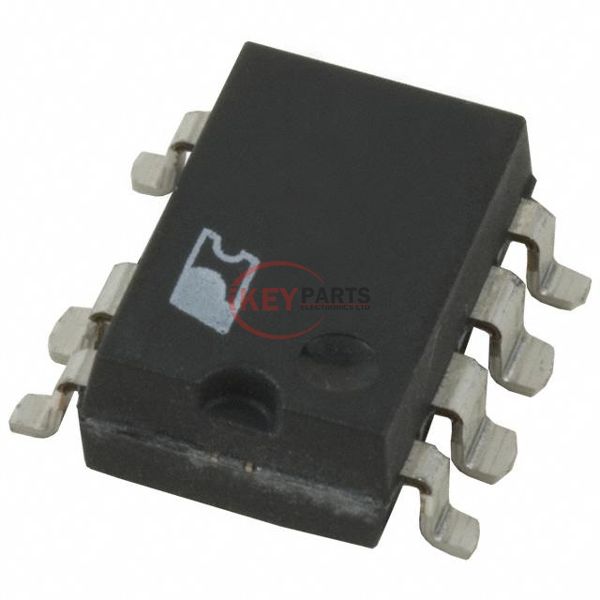

Package / Case | 8-SMD (7 Leads), Gull Wing | |
Supplier Device Package | SMD-8B | |
Mounting Type | Surface Mount |
We can supply TNY266GN-TL, use the request quote form to request TNY266GN-TL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TNY266GN-TL. The price and lead time for TNY266GN-TL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TNY266GN-TL. We look forward to working with you to establish long-term relations of cooperation.
![]() |
