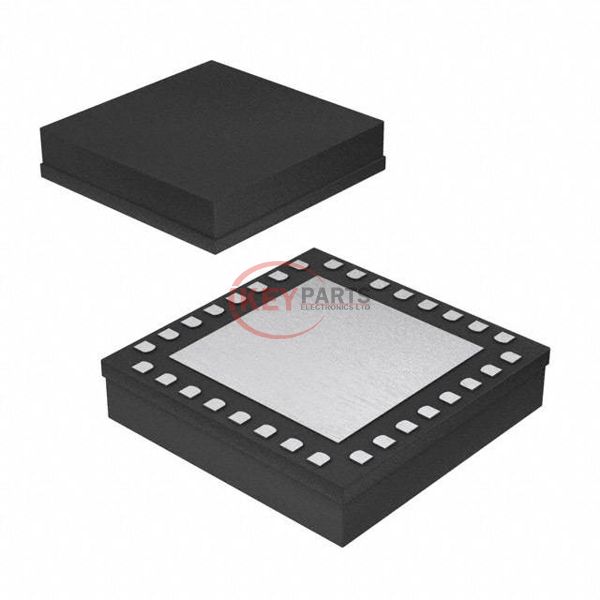

HMC508LP5E

Enlarger

Lmages are for reference only See Product Specitications

Linear Technology (Analog Devices, Inc.) HMC508LP5E

Manufacturer :
Linear Technology (Analog Devices, Inc.)
Mfr. Part # :
HMC508LP5E
Description
VCO 3.875GHZ/7.75GHZ 2-13V 5X5MM
Catalog
VCOs (Voltage Controlled Oscillators)
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
HMC508LP5E PDF
HMC508LP5E Tech Specifications
SeriesHMC508
PackageStrip
Part StatusActive
Frequency Range3.65 ~ 4.1GHz, 7.3 ~ 8.2GHz
Frequency - Center3.875GHz, 7.75GHz
Voltage - Supply5V
Tuning Voltage (VDC)2 V ~ 13.0 V
2nd Harmonic, Typ (dBc)20
Icc Max280mA
Pushing (MHz/V)10
Power (dBm)14.5±2.5, 7±3
Phase Noise Typ (dBc/Hz)-116
Operating Temperature-40°C ~ 85°C
Package / Case32-VFQFN Exposed Pad, CSP
Size / Dimension0.197" L x 0.197" W (5.00mm x 5.00mm)
Height0.039" (1.00mm)
Request Quote Now
Request Quote Now

We can supply HMC508LP5E, use the request quote form to request HMC508LP5E pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HMC508LP5E. The price and lead time for HMC508LP5E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HMC508LP5E. We look forward to working with you to establish long-term relations of cooperation.
