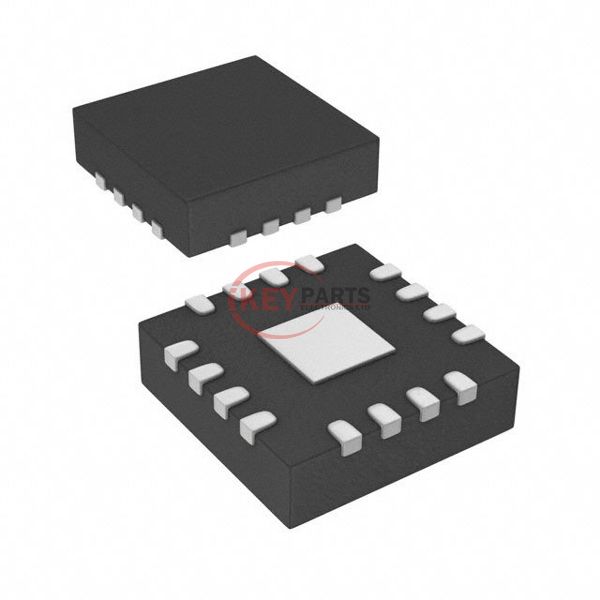

PIC16F1503-E/MG

Enlarger

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology PIC16F1503-E/MG

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
PIC16F1503-E/MG
Description
IC MCU 8BIT 3.5KB FLASH 16QFN
Catalog
Embedded - Microcontrollers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PIC16F1503-E/MG PDF
PIC16F1503-E/MG Tech Specifications
SeriesPIC® 16F, Functional Safety (FuSa)
PackageTube
Part StatusActive
Core ProcessorPIC
Core Size8-Bit
Speed20MHz
ConnectivityI²C, SPI
PeripheralsBrown-out Detect/Reset, POR, PWM, WDT
Number of I/O11
Program Memory Size3.5KB (2K x 14)
Program Memory TypeFLASH
EEPROM Size-
RAM Size128 x 8
Voltage - Supply (Vcc/Vdd)2.3V ~ 5.5V
Data ConvertersA/D 8x10b
Oscillator TypeInternal
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-VFQFN Exposed Pad
Supplier Device Package16-QFN-EP (3x3)
Request Quote Now
Request Quote Now

We can supply PIC16F1503-E/MG, use the request quote form to request PIC16F1503-E/MG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PIC16F1503-E/MG. The price and lead time for PIC16F1503-E/MG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PIC16F1503-E/MG. We look forward to working with you to establish long-term relations of cooperation.
