Z8F0223PH005SG2156

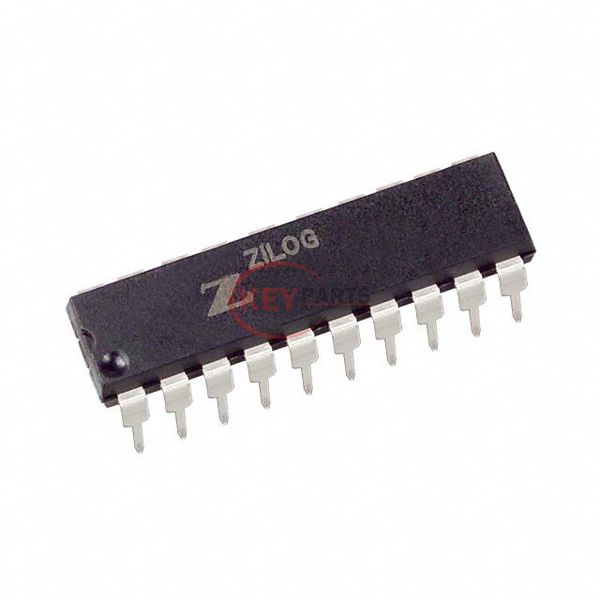

Enlarger

Lmages are for reference only See Product Specitications

Zilog / Littelfuse Z8F0223PH005SG2156

Manufacturer :
Zilog / Littelfuse
Mfr. Part # :
Z8F0223PH005SG2156
Description
IC MCU 8BIT 2KB FLASH 20DIP
Catalog
Embedded - Microcontrollers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
Z8F0223PH005SG2156 PDF
In Stock
419
Z8F0223PH005SG2156 Tech Specifications
SeriesEncore!® XP®
PackageTube
Part StatusActive
Core ProcessoreZ8
Core Size8-Bit
Speed5MHz
ConnectivityIrDA, UART/USART
PeripheralsBrown-out Detect/Reset, LED, POR, PWM, WDT
Number of I/O16
Program Memory Size2KB (2K x 8)
Program Memory TypeFLASH
EEPROM Size-
RAM Size512 x 8
Voltage - Supply (Vcc/Vdd)2.7V ~ 3.6V
Data ConvertersA/D 7x10b
Oscillator TypeInternal
Operating Temperature0°C ~ 70°C (TA)
Mounting TypeThrough Hole
Package / Case20-DIP (0.300", 7.62mm)
Supplier Device Package20-PDIP
Request Quote Now
Request Quote Now

We can supply Z8F0223PH005SG2156, use the request quote form to request Z8F0223PH005SG2156 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number Z8F0223PH005SG2156. The price and lead time for Z8F0223PH005SG2156 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# Z8F0223PH005SG2156. We look forward to working with you to establish long-term relations of cooperation.
