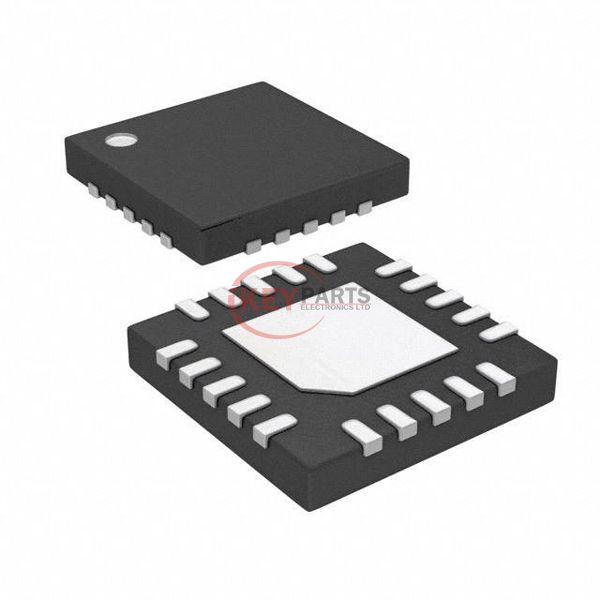

PIC16LF1509-E/GZ

Enlarger

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology PIC16LF1509-E/GZ

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
PIC16LF1509-E/GZ
Description
IC MCU 8BIT 14KB FLASH 20UQFN
Catalog
Embedded - Microcontrollers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PIC16LF1509-E/GZ PDF
In Stock
426
PIC16LF1509-E/GZ Tech Specifications
SeriesPIC® XLP™ 16F
PackageTube
Part StatusActive
Core ProcessorPIC
Core Size8-Bit
Speed20MHz
ConnectivityI²C, LINbus, SPI, UART/USART
PeripheralsBrown-out Detect/Reset, POR, PWM, WDT
Number of I/O17
Program Memory Size14KB (8K x 14)
Program Memory TypeFLASH
EEPROM Size-
RAM Size512 x 8
Voltage - Supply (Vcc/Vdd)1.8V ~ 3.6V
Data ConvertersA/D 12x10b; D/A 1x5b
Oscillator TypeInternal
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case20-UFQFN Exposed Pad
Supplier Device Package20-UQFN (4x4)
Request Quote Now
Request Quote Now

We can supply PIC16LF1509-E/GZ, use the request quote form to request PIC16LF1509-E/GZ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PIC16LF1509-E/GZ. The price and lead time for PIC16LF1509-E/GZ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PIC16LF1509-E/GZ. We look forward to working with you to establish long-term relations of cooperation.
