Series | PIC® XLP™ 16F | |
Package | Tube | |
Part Status | Active | |
Core Processor | PIC | |
Core Size | 8-Bit | |
Speed | 20MHz | |
Connectivity | I²C, LINbus, SPI, UART/USART | |
Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | |
Number of I/O | 17 | |
Program Memory Size | 14KB (8K x 14) | |
Program Memory Type | FLASH | |
EEPROM Size | - | |
RAM Size | 512 x 8 | |
Voltage - Supply (Vcc/Vdd) | 2.3V ~ 5.5V | |
Data Converters | A/D 12x10b; D/A 1x5b | |
Oscillator Type | Internal | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Mounting Type | Surface Mount | |

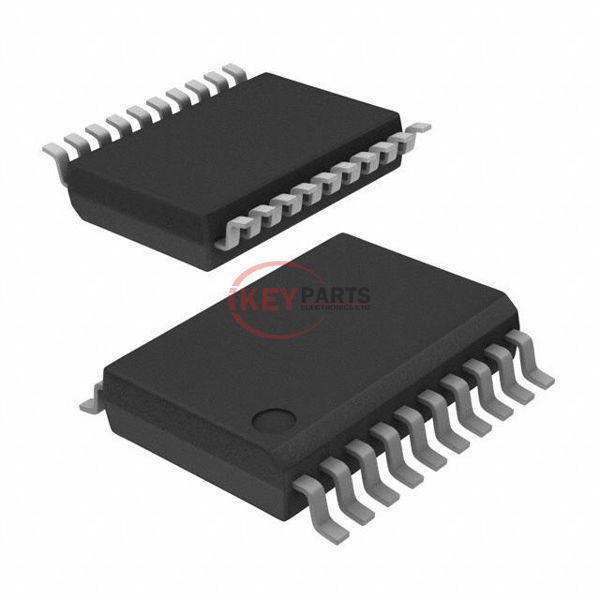

Package / Case | 20-SSOP (0.209", 5.30mm Width) | |
Supplier Device Package | 20-SSOP |
We can supply PIC16F1509-I/SS, use the request quote form to request PIC16F1509-I/SS pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PIC16F1509-I/SS. The price and lead time for PIC16F1509-I/SS depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PIC16F1509-I/SS. We look forward to working with you to establish long-term relations of cooperation.
![]() |
