PIC16F1509T-I/SS

Enlarger

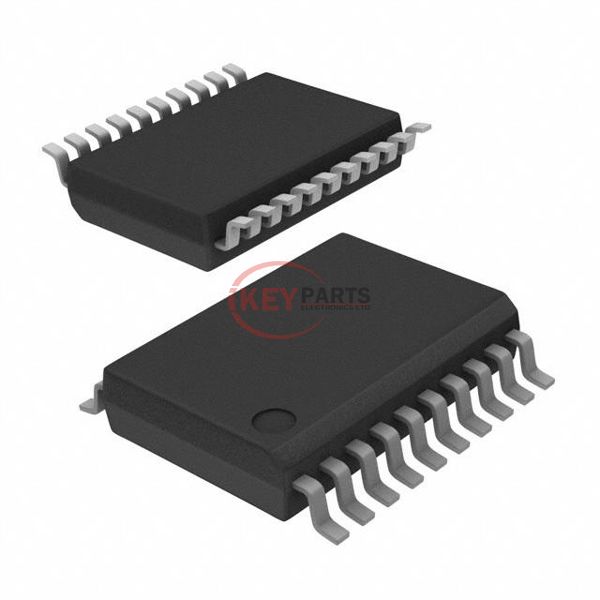

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology PIC16F1509T-I/SS

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
PIC16F1509T-I/SS
Description
IC MCU 8BIT 14KB FLASH 20SSOP
Catalog
Embedded - Microcontrollers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PIC16F1509T-I/SS PDF
PIC16F1509T-I/SS Tech Specifications
SeriesPIC® XLP™ 16F
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Core ProcessorPIC
Core Size8-Bit
Speed20MHz
ConnectivityI²C, LINbus, SPI, UART/USART
PeripheralsBrown-out Detect/Reset, POR, PWM, WDT
Number of I/O17
Program Memory Size14KB (8K x 14)
Program Memory TypeFLASH
EEPROM Size-
RAM Size512 x 8
Voltage - Supply (Vcc/Vdd)2.3V ~ 5.5V
Data ConvertersA/D 12x10b; D/A 1x5b
Oscillator TypeInternal
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case20-SSOP (0.209", 5.30mm Width)
Supplier Device Package20-SSOP
Request Quote Now
Request Quote Now

We can supply PIC16F1509T-I/SS, use the request quote form to request PIC16F1509T-I/SS pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PIC16F1509T-I/SS. The price and lead time for PIC16F1509T-I/SS depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PIC16F1509T-I/SS. We look forward to working with you to establish long-term relations of cooperation.
