JAH0224D03

Enlarger

Lmages are for reference only See Product Specitications

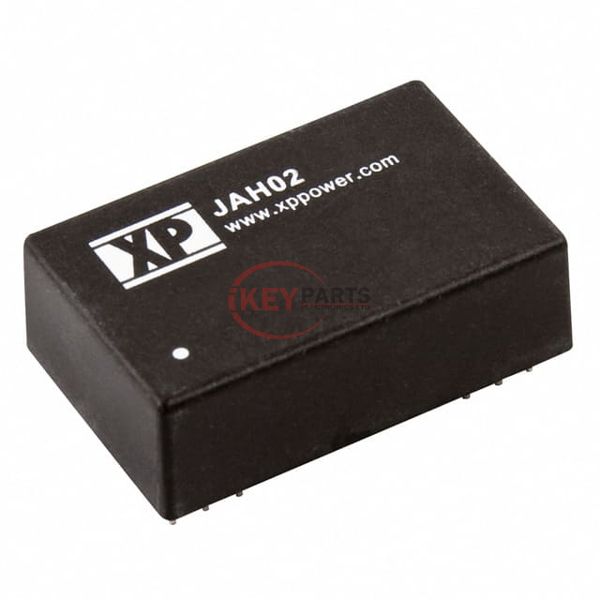

XP Power JAH0224D03

Manufacturer :
XP Power
Mfr. Part # :
JAH0224D03
Description
DC DC CONVERTER +/-3.3V 2W
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
JAH0224D03 PDF
JAH0224D03 Tech Specifications
SeriesJAH (2W)
PackageTube
Part StatusActive
TypeIsolated Module
Number of Outputs2
Voltage - Input (Min)21.6V
Voltage - Input (Max)26.4V
Voltage - Output 13.3V
Voltage - Output 2-3.3V
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)300mA
Power (Watts)2 W
Voltage - Isolation1 kV
ApplicationsITE (Commercial)
FeaturesSCP, UVLO
Operating Temperature-40°C ~ 100°C
Efficiency68%
Mounting TypeThrough Hole
Package / Case24-DIP Module, 12 Leads
Size / Dimension1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply JAH0224D03, use the request quote form to request JAH0224D03 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number JAH0224D03. The price and lead time for JAH0224D03 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# JAH0224D03. We look forward to working with you to establish long-term relations of cooperation.
