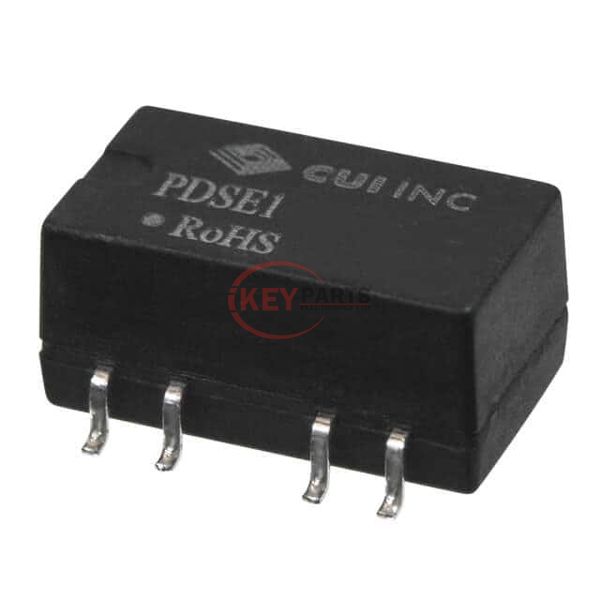

PDSE1-S5-D9-M-TR

Enlarger

Lmages are for reference only See Product Specitications

CUI Inc. PDSE1-S5-D9-M-TR

Manufacturer :
CUI Inc.
Mfr. Part # :
PDSE1-S5-D9-M-TR
Description
DC DC CONVERTER +/-9V 1W
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PDSE1-S5-D9-M-TR PDF
PDSE1-S5-D9-M-TR Tech Specifications
SeriesPDSE1-M (1W)
PackageTape & Reel (TR)
Part StatusActive
TypeIsolated Module
Number of Outputs2
Voltage - Input (Min)4.5V
Voltage - Input (Max)5.5V
Voltage - Output 19V
Voltage - Output 2-9V
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)56mA, 56mA
Power (Watts)1 W
Voltage - Isolation1.5 kV
ApplicationsITE (Commercial)
FeaturesSCP
Operating Temperature-40°C ~ 105°C (With Derating)
Efficiency83%
Mounting TypeSurface Mount
Package / Case10-SMD Module, 6 Leads
Size / Dimension0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm)
Supplier Device Package-
Control Features-
Approval AgencyCB Scheme, EN, IEC, UL
Standard Number55024; 55032 Class A; 62368-1
Request Quote Now
Request Quote Now

We can supply PDSE1-S5-D9-M-TR, use the request quote form to request PDSE1-S5-D9-M-TR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PDSE1-S5-D9-M-TR. The price and lead time for PDSE1-S5-D9-M-TR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PDSE1-S5-D9-M-TR. We look forward to working with you to establish long-term relations of cooperation.
