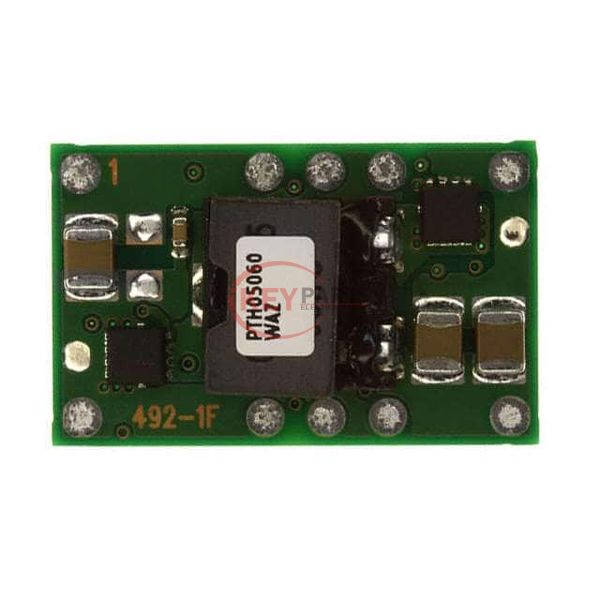

PTH05060WAZ

Enlarger

Lmages are for reference only See Product Specitications

Texas Instruments PTH05060WAZ

Manufacturer :
Texas Instruments
Mfr. Part # :
PTH05060WAZ
Description
DC DC CONVERTER 0.8-3.6V 36W
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PTH05060WAZ PDF
In Stock
317
PTH05060WAZ Tech Specifications
SeriesPTH05060W
PackageTray
Part StatusActive
TypeNon-Isolated PoL Module
Number of Outputs1
Voltage - Input (Min)4.5V
Voltage - Input (Max)5.5V
Voltage - Output 10.8 ~ 3.6V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)10A
Power (Watts)-
Voltage - Isolation-
ApplicationsITE (Commercial)
FeaturesRemote On/Off, OCP, OTP, UVLO
Operating Temperature-40°C ~ 85°C
Efficiency94%
Mounting TypeSurface Mount
Package / Case10-SMD Module
Size / Dimension0.99" L x 0.62" W x 0.38" H (25.3mm x 15.8mm x 9.6mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply PTH05060WAZ, use the request quote form to request PTH05060WAZ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PTH05060WAZ. The price and lead time for PTH05060WAZ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PTH05060WAZ. We look forward to working with you to establish long-term relations of cooperation.
