PTN78060AAS

Enlarger

Lmages are for reference only See Product Specitications

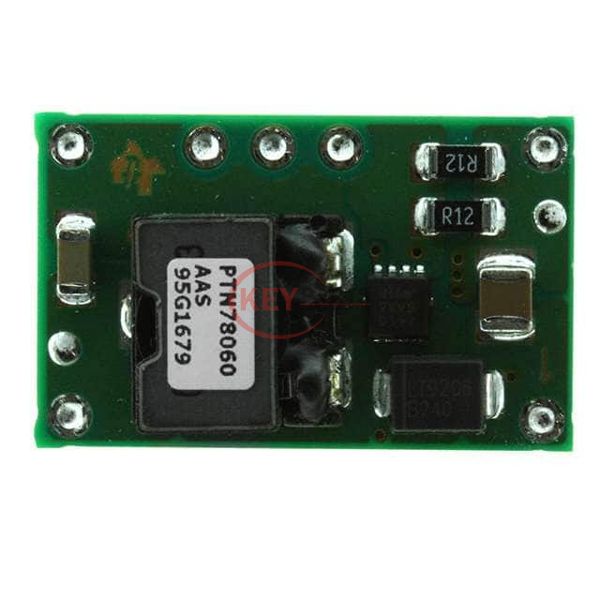

Texas Instruments PTN78060AAS

Manufacturer :
Texas Instruments
Mfr. Part # :
PTN78060AAS
Description
DC DC CONVERTER -15 TO -3V
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PTN78060AAS PDF
In Stock
342
PTN78060AAS Tech Specifications
SeriesPTN78060A (15W)
PackageTray
Part StatusActive
TypeNon-Isolated PoL Module
Number of Outputs1
Voltage - Input (Min)9V
Voltage - Input (Max)28.7V
Voltage - Output 1-15 ~ -3V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)3A
Power (Watts)-
Voltage - Isolation-
ApplicationsITE (Commercial)
FeaturesOCP, OTP, UVLO
Operating Temperature-40°C ~ 85°C
Efficiency88%
Mounting TypeSurface Mount
Package / Case7-SMD Module
Size / Dimension1.00" L x 0.62" W x 0.38" H (25.4mm x 15.7mm x 9.7mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply PTN78060AAS, use the request quote form to request PTN78060AAS pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PTN78060AAS. The price and lead time for PTN78060AAS depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PTN78060AAS. We look forward to working with you to establish long-term relations of cooperation.
