EDL03-05D15

Enlarger

Lmages are for reference only See Product Specitications

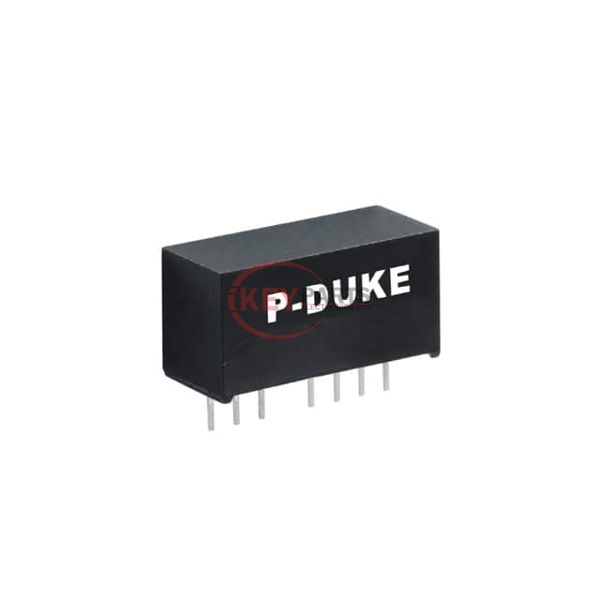

P-Duke Technology, Inc. EDL03-05D15

Manufacturer :
P-Duke Technology, Inc.
Mfr. Part # :
EDL03-05D15
Description
DC DC CONVERTER +/-15V 3W
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
EDL03-05D15 PDF
EDL03-05D15 Tech Specifications
SeriesEDL03 (3W)
PackageTube
Part StatusActive
TypeIsolated Module
Number of Outputs2
Voltage - Input (Min)4.5V
Voltage - Input (Max)13.2V
Voltage - Output 115V
Voltage - Output 2-15V
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)100mA, 100mA
Power (Watts)3 W
Voltage - Isolation1.6 kV
ApplicationsITE (Commercial)
FeaturesRemote On/Off
Operating Temperature-40°C ~ 105°C (With Derating)
Efficiency82%
Mounting TypeThrough Hole
Package / Case8-SIP Module, 7 Leads
Size / Dimension0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
Supplier Device Package-
Control Features-
Approval AgencyCE
Standard Number-
Request Quote Now
Request Quote Now

We can supply EDL03-05D15, use the request quote form to request EDL03-05D15 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EDL03-05D15. The price and lead time for EDL03-05D15 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EDL03-05D15. We look forward to working with you to establish long-term relations of cooperation.
