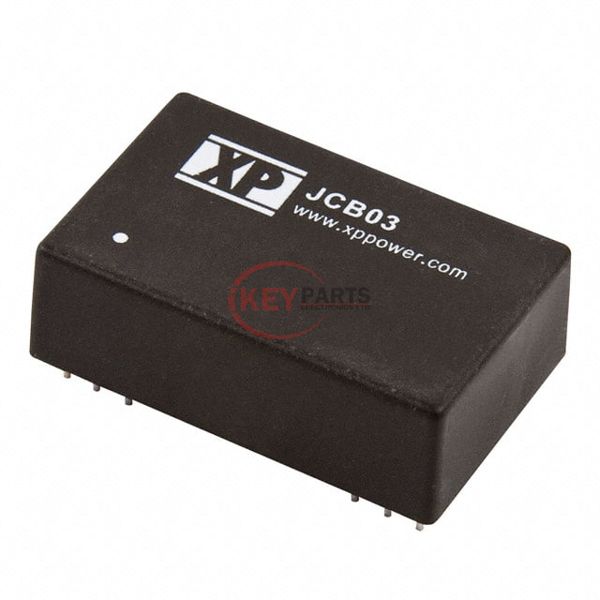

JCB0305D05

Enlarger

Lmages are for reference only See Product Specitications

XP Power JCB0305D05

Manufacturer :
XP Power
Mfr. Part # :
JCB0305D05
Description
DC DC CONVERTER +/-5V 3W
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
JCB0305D05 PDF
In Stock
710
JCB0305D05 Tech Specifications
SeriesJCB (3W)
PackageBulk
Part StatusActive
TypeIsolated Module
Number of Outputs2
Voltage - Input (Min)4.5V
Voltage - Input (Max)9V
Voltage - Output 15V
Voltage - Output 2-5V
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)300mA, 300mA
Power (Watts)3 W
Voltage - Isolation1.5 kV
ApplicationsITE (Commercial)
FeaturesOCP, OVP, SCP, UVLO
Operating Temperature-40°C ~ 100°C (With Derating)
Efficiency69%
Mounting TypeThrough Hole
Package / Case24-DIP Module, 14 Leads
Size / Dimension1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply JCB0305D05, use the request quote form to request JCB0305D05 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number JCB0305D05. The price and lead time for JCB0305D05 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# JCB0305D05. We look forward to working with you to establish long-term relations of cooperation.
