PTN78060HAZ

Enlarger

Lmages are for reference only See Product Specitications

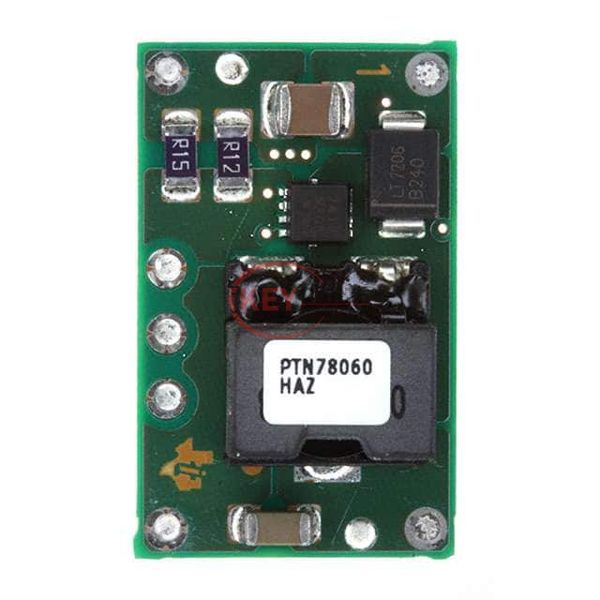

Texas Instruments PTN78060HAZ

Manufacturer :
Texas Instruments
Mfr. Part # :
PTN78060HAZ
Description
DC DC CONVERTER 11.85-22V
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PTN78060HAZ PDF
In Stock
577
PTN78060HAZ Tech Specifications
SeriesPTN78060H
PackageTray
Part StatusActive
TypeNon-Isolated PoL Module
Number of Outputs1
Voltage - Input (Min)15V
Voltage - Input (Max)36V
Voltage - Output 111.85 ~ 22V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)3A
Power (Watts)-
Voltage - Isolation-
ApplicationsITE (Commercial)
FeaturesRemote On/Off, OCP, OTP, UVLO
Operating Temperature-40°C ~ 85°C
Efficiency96%
Mounting TypeSurface Mount
Package / Case7-SMD Module
Size / Dimension1.00" L x 0.62" W x 0.38" H (25.4mm x 15.7mm x 9.7mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply PTN78060HAZ, use the request quote form to request PTN78060HAZ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PTN78060HAZ. The price and lead time for PTN78060HAZ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PTN78060HAZ. We look forward to working with you to establish long-term relations of cooperation.
