DPAN02E-05

Enlarger

Lmages are for reference only See Product Specitications

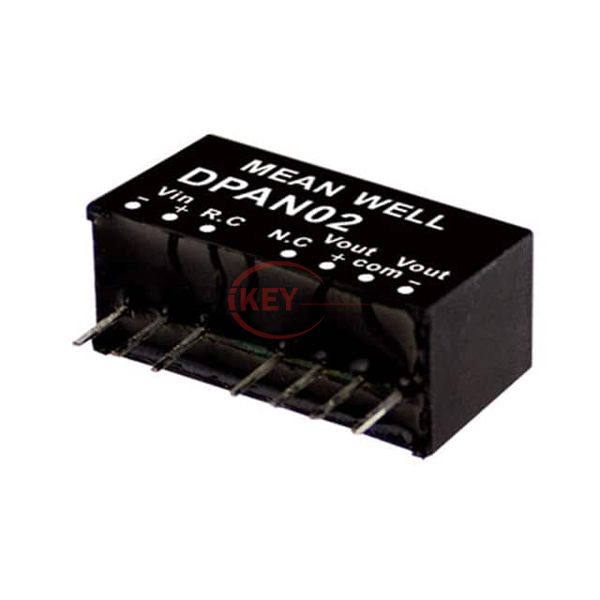

MEAN WELL DPAN02E-05

Manufacturer :
MEAN WELL
Mfr. Part # :
DPAN02E-05
Description
DC DC CONVERTER +/-5V 2W
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DPAN02E-05 PDF
DPAN02E-05 Tech Specifications
SeriesDPAN02 (2W)
PackageTube
Part StatusActive
TypeIsolated Module
Number of Outputs2
Voltage - Input (Min)4.5V
Voltage - Input (Max)9V
Voltage - Output 15V
Voltage - Output 2-5V
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)200mA, 200mA
Power (Watts)2 W
Voltage - Isolation1.5 kV
ApplicationsITE (Commercial)
FeaturesRemote On/Off, OCP, SCP, UVLO
Operating Temperature-40°C ~ 90°C (With Derating)
Efficiency78%
Mounting TypeThrough Hole
Package / Case8-SIP Module, 7 Leads
Size / Dimension0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply DPAN02E-05, use the request quote form to request DPAN02E-05 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DPAN02E-05. The price and lead time for DPAN02E-05 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DPAN02E-05. We look forward to working with you to establish long-term relations of cooperation.
