PT6946N

Enlarger

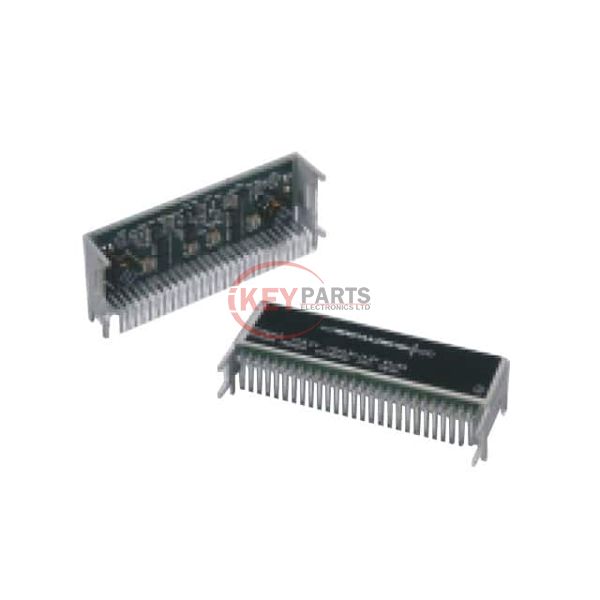

Lmages are for reference only See Product Specitications

Rochester Electronics PT6946N

Manufacturer :
Rochester Electronics
Mfr. Part # :
PT6946N
Description
SWITCHING REGLTR, VOLTAGE-MODE
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PT6946N PDF
In Stock
345
PT6946N Tech Specifications
SeriesExcalibur™ PT6940
PackageTray
Part StatusObsolete
TypeNon-Isolated PoL Module
Number of Outputs2
Voltage - Input (Min)3.1V
Voltage - Input (Max)5.5V
Voltage - Output 12.5V
Voltage - Output 21.8V
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)6A, 6A
Power (Watts)-
Voltage - Isolation-
ApplicationsITE (Commercial)
Features-
Operating Temperature-40°C ~ 85°C
Efficiency89%
Mounting TypeThrough Hole
Package / Case27-SIP Module, Vertical
Size / Dimension3.00" L x 0.66" W x 1.02" H (76.2mm x 16.8mm x 25.9mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply PT6946N, use the request quote form to request PT6946N pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PT6946N. The price and lead time for PT6946N depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PT6946N. We look forward to working with you to establish long-term relations of cooperation.
