PTB48560AAH

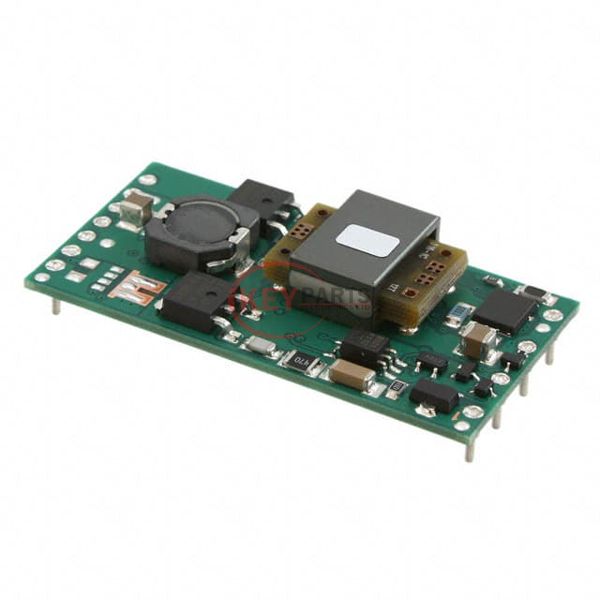

Enlarger

Lmages are for reference only See Product Specitications

Texas Instruments PTB48560AAH

Manufacturer :
Texas Instruments
Mfr. Part # :
PTB48560AAH
Description
DC DC CONVERTER 3.6-5.5V 30W
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PTB48560AAH PDF
In Stock
882
PTB48560AAH Tech Specifications
SeriesPTB48560 (30W)
PackageTray
Part StatusNot For New Designs
TypeIsolated Module
Number of Outputs1
Voltage - Input (Min)36V
Voltage - Input (Max)75V
Voltage - Output 13.6 ~ 5.5V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)6A
Power (Watts)30 W
Voltage - Isolation1.5 kV
ApplicationsITE (Commercial)
Features-
Operating Temperature-40°C ~ 85°C
Efficiency84%
Mounting TypeThrough Hole
Package / Case11-DIP Module
Size / Dimension2.05" L x 1.05" W x 0.39" H (51.9mm x 26.5mm x 10.0mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply PTB48560AAH, use the request quote form to request PTB48560AAH pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PTB48560AAH. The price and lead time for PTB48560AAH depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PTB48560AAH. We look forward to working with you to establish long-term relations of cooperation.
