JCD0524D09

Enlarger

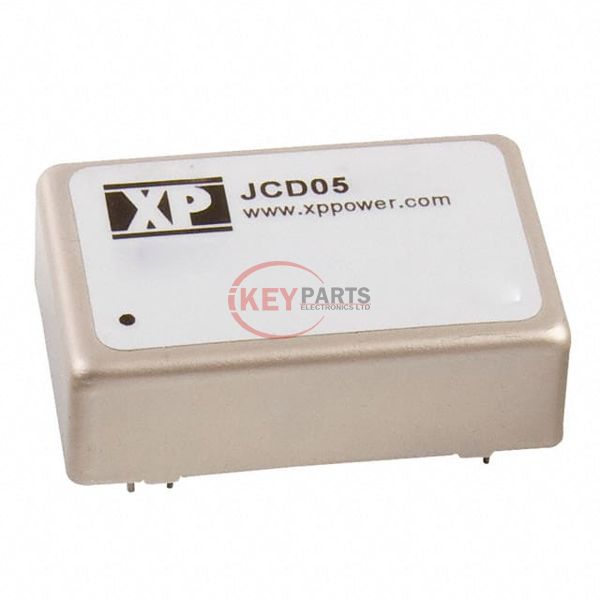

Lmages are for reference only See Product Specitications

XP Power JCD0524D09

Manufacturer :
XP Power
Mfr. Part # :
JCD0524D09
Description
DC DC CONVERTER +/-9V 5W
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
JCD0524D09 PDF
In Stock
895
JCD0524D09 Tech Specifications
SeriesJCD (5W)
PackageTube
Part StatusActive
TypeIsolated Module
Number of Outputs2
Voltage - Input (Min)18V
Voltage - Input (Max)36V
Voltage - Output 19V
Voltage - Output 2-9V
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)278mA
Power (Watts)5 W
Voltage - Isolation1.6 kV
ApplicationsITE (Commercial)
FeaturesOCP, OVP, SCP
Operating Temperature-40°C ~ 100°C
Efficiency83%
Mounting TypeThrough Hole
Package / Case24-DIP Module, 8 Leads
Size / Dimension1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number62368-1
Request Quote Now
Request Quote Now

We can supply JCD0524D09, use the request quote form to request JCD0524D09 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number JCD0524D09. The price and lead time for JCD0524D09 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# JCD0524D09. We look forward to working with you to establish long-term relations of cooperation.
