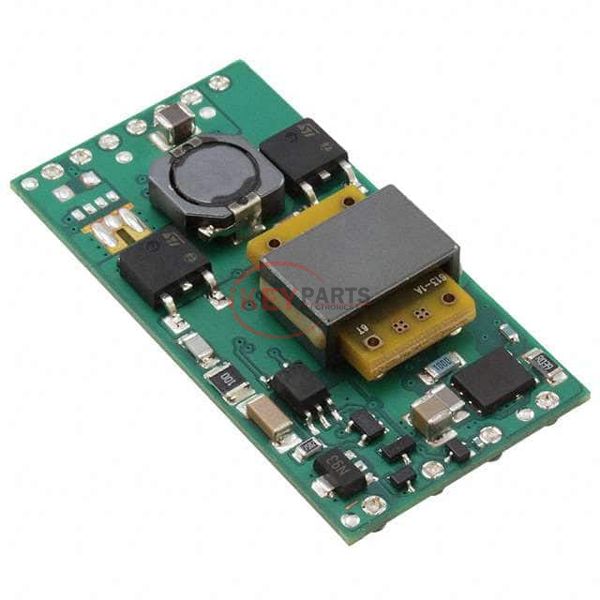

PTB78560AAZ

Enlarger

Lmages are for reference only See Product Specitications

Texas Instruments PTB78560AAZ

Manufacturer :
Texas Instruments
Mfr. Part # :
PTB78560AAZ
Description
DC DC CONVERTER 3.6-5.5V 30W
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PTB78560AAZ PDF
In Stock
623
PTB78560AAZ Tech Specifications
SeriesPTB78560 (30W)
PackageTray
Part StatusNot For New Designs
TypeIsolated Module
Number of Outputs1
Voltage - Input (Min)18V
Voltage - Input (Max)60V
Voltage - Output 13.6 ~ 5.5V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)6A
Power (Watts)30 W
Voltage - Isolation1.5 kV
ApplicationsITE (Commercial)
FeaturesRemote On/Off, OCP, OTP, UVLO
Operating Temperature-40°C ~ 85°C
Efficiency83%
Mounting TypeSurface Mount
Package / Case11-SMD Module
Size / Dimension2.04" L x 1.04" W x 0.40" H (51.8mm x 26.5mm x 10.3mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply PTB78560AAZ, use the request quote form to request PTB78560AAZ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PTB78560AAZ. The price and lead time for PTB78560AAZ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PTB78560AAZ. We look forward to working with you to establish long-term relations of cooperation.
