PTB78560CAZ

Enlarger

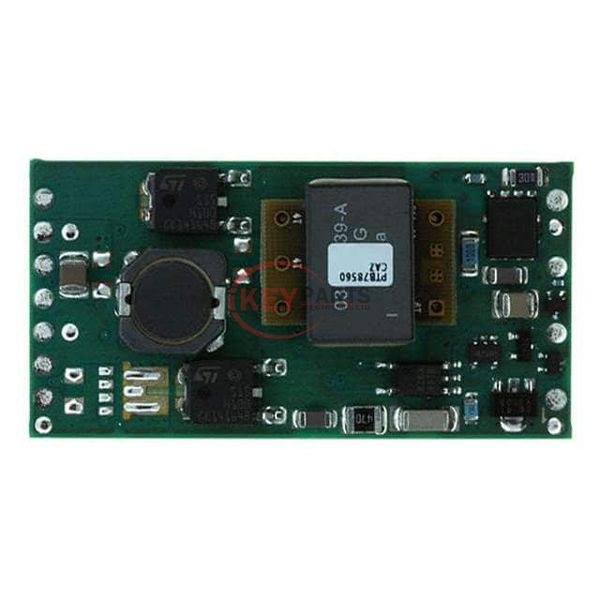

Lmages are for reference only See Product Specitications

Texas Instruments PTB78560CAZ

Manufacturer :
Texas Instruments
Mfr. Part # :
PTB78560CAZ
Description
DC DC CONVERTER 9-13.2V 30W
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PTB78560CAZ PDF
In Stock
503
PTB78560CAZ Tech Specifications
SeriesPTB78560 (30W)
PackageTray
Part StatusNot For New Designs
TypeIsolated Module
Number of Outputs1
Voltage - Input (Min)18V
Voltage - Input (Max)60V
Voltage - Output 19 ~ 13.2V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)2.5A
Power (Watts)30 W
Voltage - Isolation1.5 kV
ApplicationsITE (Commercial)
FeaturesRemote On/Off, OCP, OTP, UVLO
Operating Temperature-40°C ~ 85°C
Efficiency88%
Mounting TypeSurface Mount
Package / Case11-SMD Module
Size / Dimension2.04" L x 1.04" W x 0.40" H (51.8mm x 26.5mm x 10.3mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply PTB78560CAZ, use the request quote form to request PTB78560CAZ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PTB78560CAZ. The price and lead time for PTB78560CAZ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PTB78560CAZ. We look forward to working with you to establish long-term relations of cooperation.
