PTB48580AAZ

Enlarger

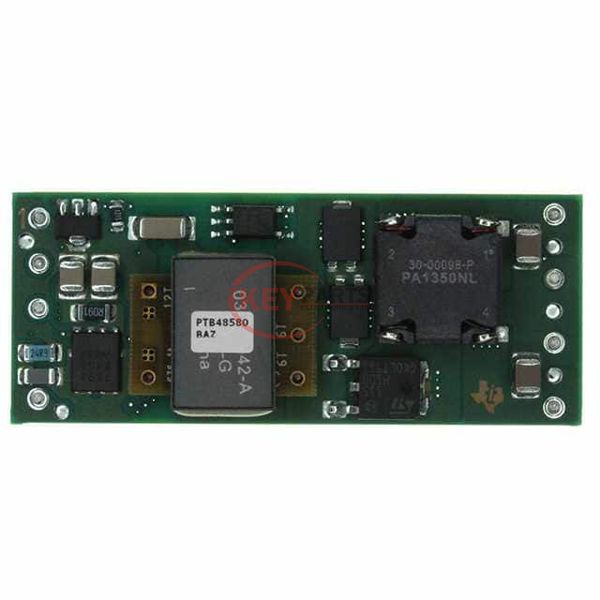

Lmages are for reference only See Product Specitications

Texas Instruments PTB48580AAZ

Manufacturer :
Texas Instruments
Mfr. Part # :
PTB48580AAZ
Description
DC DC CONVERTER +/-5V 30W
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PTB48580AAZ PDF
In Stock
247
PTB48580AAZ Tech Specifications
SeriesPTB48580
PackageTray
Part StatusNot For New Designs
TypeIsolated Module
Number of Outputs2
Voltage - Input (Min)36V
Voltage - Input (Max)75V
Voltage - Output 15V
Voltage - Output 2-5V
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)3A, 3A
Power (Watts)30 W
Voltage - Isolation1.5 kV
ApplicationsITE (Commercial)
FeaturesRemote On/Off, OCP, OTP, UVLO
Operating Temperature-40°C ~ 85°C
Efficiency86%
Mounting TypeSurface Mount
Package / Case8-SMD Module
Size / Dimension2.22" L x 0.90" W x 0.44" H (56.4mm x 22.9mm x 11.1mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply PTB48580AAZ, use the request quote form to request PTB48580AAZ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PTB48580AAZ. The price and lead time for PTB48580AAZ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PTB48580AAZ. We look forward to working with you to establish long-term relations of cooperation.
