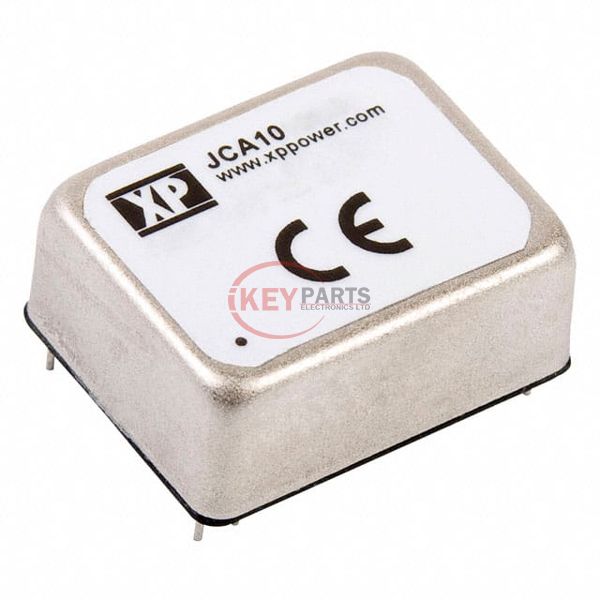

JCA1005D03

Enlarger

Lmages are for reference only See Product Specitications

XP Power JCA1005D03

Manufacturer :
XP Power
Mfr. Part # :
JCA1005D03
Description
DC DC CONVERTER +/-15V 10W
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
JCA1005D03 PDF
In Stock
150
JCA1005D03 Tech Specifications
SeriesJCA (10W)
PackageTube
Part StatusActive
TypeIsolated Module
Number of Outputs2
Voltage - Input (Min)4.5V
Voltage - Input (Max)9V
Voltage - Output 115V
Voltage - Output 2-15V
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)330mA, 330mA
Power (Watts)10 W
Voltage - Isolation1.5 kV
ApplicationsITE (Commercial)
FeaturesOCP, OVP, SCP, UVLO
Operating Temperature-40°C ~ 100°C
Efficiency85%
Mounting TypeThrough Hole
Package / Case24-DIP Module, 8 Leads
Size / Dimension1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number62368-1
Request Quote Now
Request Quote Now

We can supply JCA1005D03, use the request quote form to request JCA1005D03 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number JCA1005D03. The price and lead time for JCA1005D03 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# JCA1005D03. We look forward to working with you to establish long-term relations of cooperation.
