PTH12020WAZ

Enlarger

Lmages are for reference only See Product Specitications

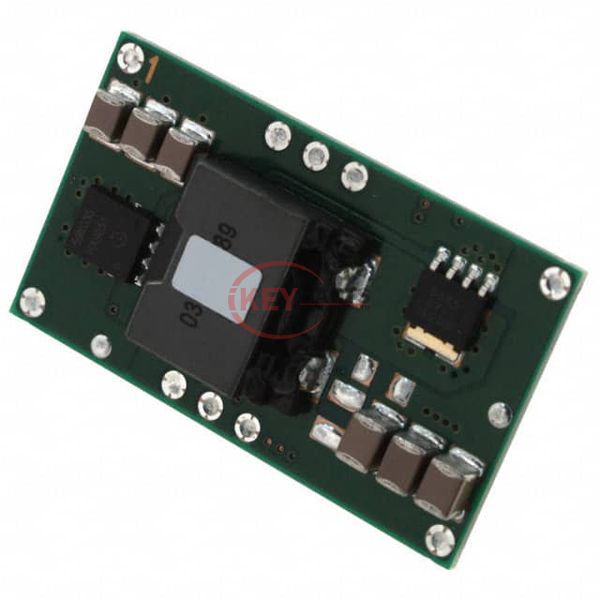

Texas Instruments PTH12020WAZ

Manufacturer :
Texas Instruments
Mfr. Part # :
PTH12020WAZ
Description
DC DC CONVERTER 1.2-5.5V 99W
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PTH12020WAZ PDF
PTH12020WAZ Tech Specifications
SeriesPTH12020
PackageTray
Part StatusActive
TypeNon-Isolated PoL Module
Number of Outputs1
Voltage - Input (Min)10.8V
Voltage - Input (Max)13.2V
Voltage - Output 11.2 ~ 5.5V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)18A
Power (Watts)-
Voltage - Isolation-
ApplicationsITE (Commercial)
FeaturesRemote On/Off, OCP, OTP, UVLO
Operating Temperature-40°C ~ 85°C
Efficiency95%
Mounting TypeSurface Mount
Package / Case10-SMD Module
Size / Dimension1.49" L x 0.87" W x 0.38" H (38.0mm x 22.1mm x 9.6mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply PTH12020WAZ, use the request quote form to request PTH12020WAZ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PTH12020WAZ. The price and lead time for PTH12020WAZ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PTH12020WAZ. We look forward to working with you to establish long-term relations of cooperation.
