JCD0505D15

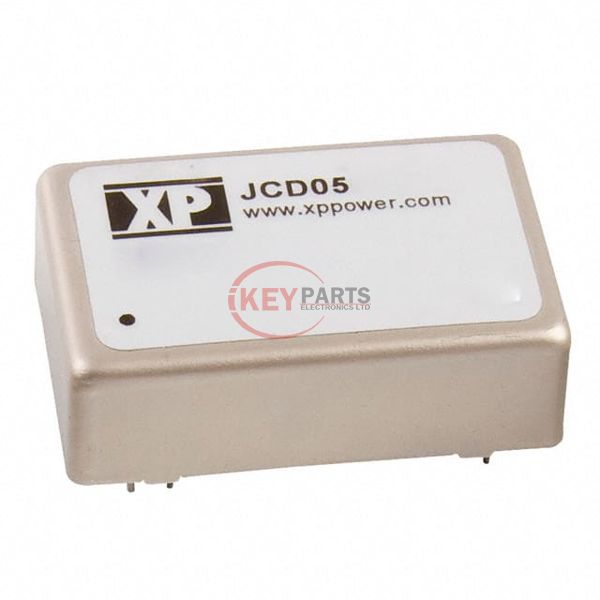

Enlarger

Lmages are for reference only See Product Specitications

XP Power JCD0505D15

Manufacturer :
XP Power
Mfr. Part # :
JCD0505D15
Description
DC DC CONVERTER +/-15V 5W
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
JCD0505D15 PDF
JCD0505D15 Tech Specifications
SeriesJCD (5W)
PackageTube
Part StatusActive
TypeIsolated Module
Number of Outputs2
Voltage - Input (Min)4.5V
Voltage - Input (Max)9V
Voltage - Output 115V
Voltage - Output 2-15V
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)167mA
Power (Watts)5 W
Voltage - Isolation1.6 kV
ApplicationsITE (Commercial)
FeaturesOCP, OVP, SCP
Operating Temperature-40°C ~ 100°C
Efficiency82%
Mounting TypeThrough Hole
Package / Case24-DIP Module, 8 Leads
Size / Dimension1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number62368-1
Request Quote Now
Request Quote Now

We can supply JCD0505D15, use the request quote form to request JCD0505D15 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number JCD0505D15. The price and lead time for JCD0505D15 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# JCD0505D15. We look forward to working with you to establish long-term relations of cooperation.
