PTN78060AAZT

Enlarger

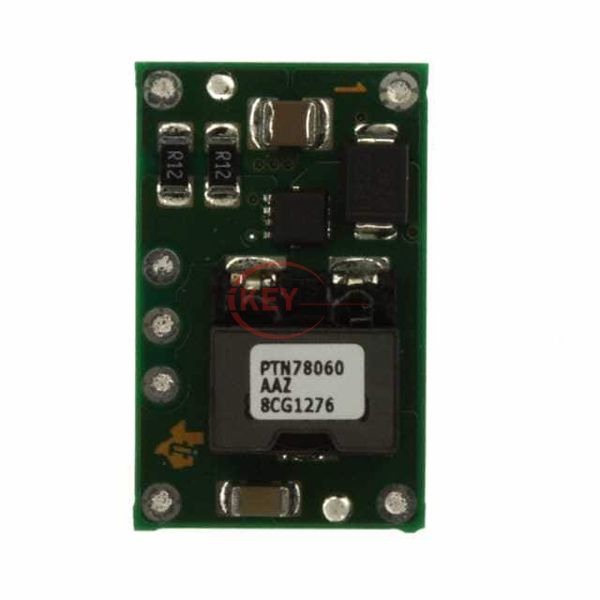

Lmages are for reference only See Product Specitications

Texas Instruments PTN78060AAZT

Manufacturer :
Texas Instruments
Mfr. Part # :
PTN78060AAZT
Description
DC DC CONVERTER -15 TO -3.3V
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PTN78060AAZT PDF
In Stock
519
PTN78060AAZT Tech Specifications
SeriesPTN78060A (15W)
PackageTape & Reel (TR)
Part StatusActive
TypeNon-Isolated PoL Module
Number of Outputs1
Voltage - Input (Min)9V
Voltage - Input (Max)28.7V
Voltage - Output 1-15 ~ -3.3V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)3A
Power (Watts)-
Voltage - Isolation-
ApplicationsITE (Commercial)
FeaturesOCP, OTP, UVLO
Operating Temperature-40°C ~ 85°C
Efficiency87%
Mounting TypeSurface Mount
Package / Case7-SMD Module
Size / Dimension1.04" L x 0.66" W x 0.35" H (26.4mm x 16.8mm x 8.9mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply PTN78060AAZT, use the request quote form to request PTN78060AAZT pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PTN78060AAZT. The price and lead time for PTN78060AAZT depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PTN78060AAZT. We look forward to working with you to establish long-term relations of cooperation.
