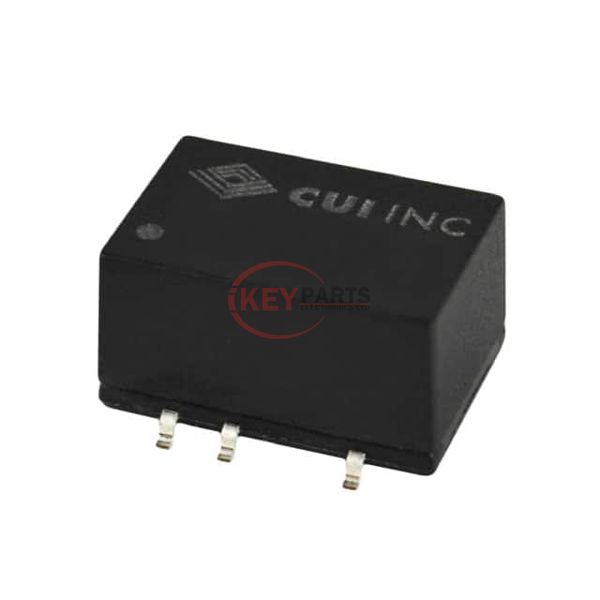

PCN1-S5-D5-M-TR

Enlarger

Lmages are for reference only See Product Specitications

CUI Inc. PCN1-S5-D5-M-TR

Manufacturer :
CUI Inc.
Mfr. Part # :
PCN1-S5-D5-M-TR
Description
DC DC CONVERTER +/-5V 1W
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PCN1-S5-D5-M-TR PDF
PCN1-S5-D5-M-TR Tech Specifications
SeriesPCN1-M (1W)
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
TypeIsolated Module
Number of Outputs2
Voltage - Input (Min)4.5V
Voltage - Input (Max)5.5V
Voltage - Output 15V
Voltage - Output 2-5V
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)100mA, 100mA
Power (Watts)1 W
Voltage - Isolation1.5 kV
ApplicationsITE (Commercial)
FeaturesSCP
Operating Temperature-40°C ~ 100°C
Efficiency74%
Mounting TypeSurface Mount
Package / Case10-SMD Module, 5 Leads
Size / Dimension0.64" L x 0.39" W x 0.29" H (16.2mm x 9.8mm x 7.4mm)
Supplier Device Package-
Control Features-
Approval AgencyEN
Standard Number55032 Class A
Request Quote Now
Request Quote Now

We can supply PCN1-S5-D5-M-TR, use the request quote form to request PCN1-S5-D5-M-TR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PCN1-S5-D5-M-TR. The price and lead time for PCN1-S5-D5-M-TR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PCN1-S5-D5-M-TR. We look forward to working with you to establish long-term relations of cooperation.
