JCA0305D01

Enlarger

Lmages are for reference only See Product Specitications

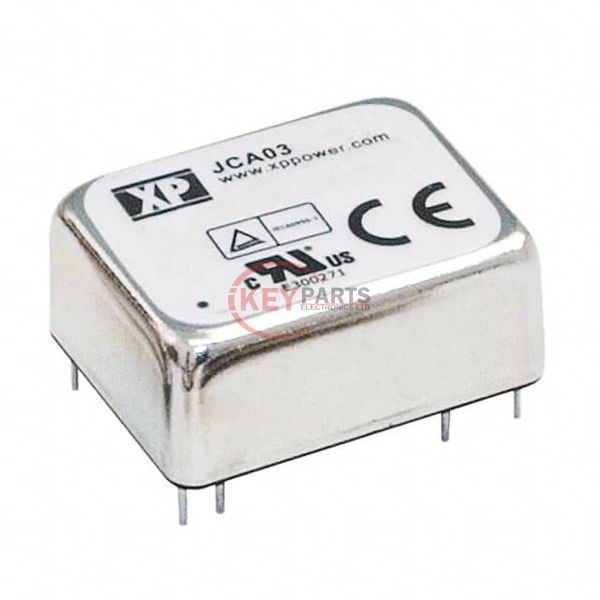

XP Power JCA0305D01

Manufacturer :
XP Power
Mfr. Part # :
JCA0305D01
Description
DC DC CONVERTER +/-5V 3W
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
JCA0305D01 PDF
In Stock
399
JCA0305D01 Tech Specifications
SeriesJCA (3W)
PackageTube
Part StatusActive
TypeIsolated Module
Number of Outputs2
Voltage - Input (Min)4.5V
Voltage - Input (Max)9V
Voltage - Output 15V
Voltage - Output 2-5V
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)300mA, 300mA
Power (Watts)3 W
Voltage - Isolation1.5 kV
ApplicationsITE (Commercial)
FeaturesOCP, OVP, SCP, UVLO
Operating Temperature-40°C ~ 100°C
Efficiency74%
Mounting TypeThrough Hole
Package / Case24-DIP Module, 8 Leads
Size / Dimension1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number62368-1
Request Quote Now
Request Quote Now

We can supply JCA0305D01, use the request quote form to request JCA0305D01 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number JCA0305D01. The price and lead time for JCA0305D01 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# JCA0305D01. We look forward to working with you to establish long-term relations of cooperation.
