PTN78060AAH

Enlarger

Lmages are for reference only See Product Specitications

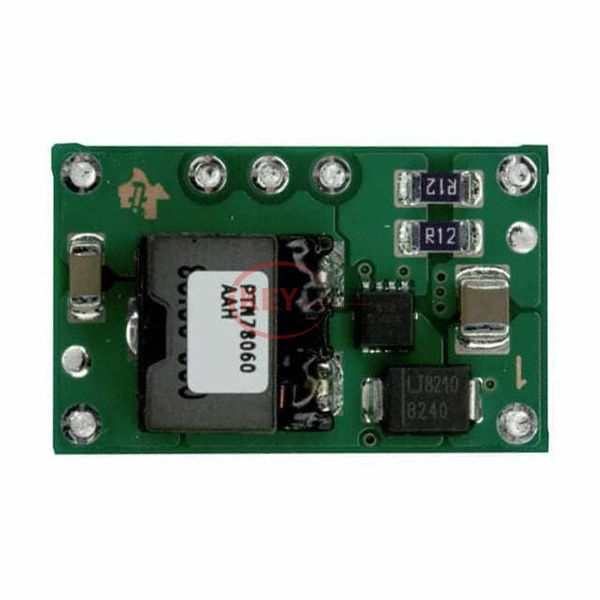

Texas Instruments PTN78060AAH

Manufacturer :
Texas Instruments
Mfr. Part # :
PTN78060AAH
Description
DC DC CONVERTER -15 TO -3V
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PTN78060AAH PDF
In Stock
216
PTN78060AAH Tech Specifications
SeriesPTN78060A (15W)
PackageTray
Part StatusActive
TypeNon-Isolated PoL Module
Number of Outputs1
Voltage - Input (Min)9V
Voltage - Input (Max)28.7V
Voltage - Output 1-15 ~ -3V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)3A
Power (Watts)-
Voltage - Isolation-
ApplicationsITE (Commercial)
FeaturesUVLO
Operating Temperature-40°C ~ 85°C
Efficiency88%
Mounting TypeThrough Hole
Package / Case7-DIP Module
Size / Dimension1.00" L x 0.62" W x 0.35" H (25.4mm x 15.7mm x 8.9mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply PTN78060AAH, use the request quote form to request PTN78060AAH pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PTN78060AAH. The price and lead time for PTN78060AAH depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PTN78060AAH. We look forward to working with you to establish long-term relations of cooperation.
