JCG1224D15

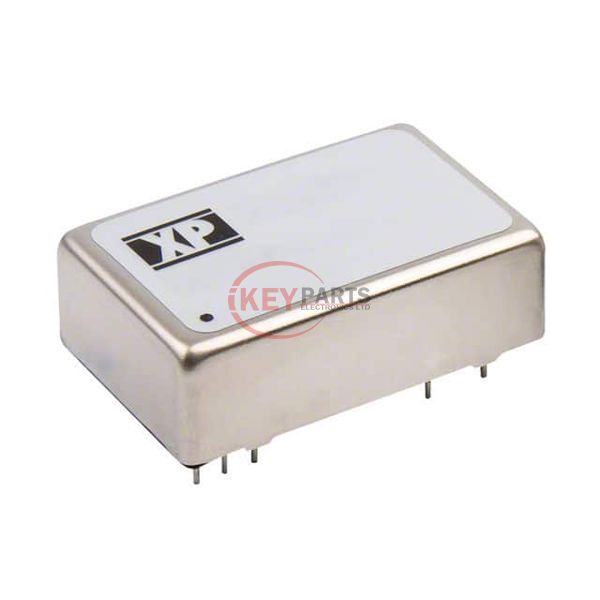

Enlarger

Lmages are for reference only See Product Specitications

XP Power JCG1224D15

Manufacturer :
XP Power
Mfr. Part # :
JCG1224D15
Description
DC DC CONVERTER +/-15V 12W
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
JCG1224D15 PDF
JCG1224D15 Tech Specifications
SeriesJCG (12W)
PackageTube
Part StatusActive
TypeIsolated Module
Number of Outputs2
Voltage - Input (Min)18V
Voltage - Input (Max)36V
Voltage - Output 115V
Voltage - Output 2-15V
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)400mA, 400mA
Power (Watts)12 W
Voltage - Isolation1.6 kV
ApplicationsITE (Commercial)
FeaturesRemote On/Off, OCP, OVP, SCP, UVLO
Operating Temperature-40°C ~ 100°C
Efficiency91%
Mounting TypeThrough Hole
Package / Case24-DIP Module, 9 Leads
Size / Dimension1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package-
Control FeaturesEnable, Active High
Approval Agency-
Standard Number62368-1
Request Quote Now
Request Quote Now

We can supply JCG1224D15, use the request quote form to request JCG1224D15 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number JCG1224D15. The price and lead time for JCG1224D15 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# JCG1224D15. We look forward to working with you to establish long-term relations of cooperation.
