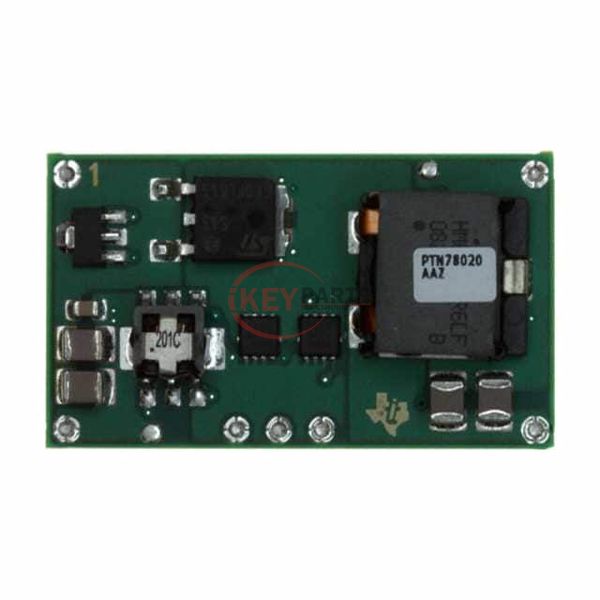

PTN78020AAZ

Enlarger

Lmages are for reference only See Product Specitications

Texas Instruments PTN78020AAZ

Manufacturer :
Texas Instruments
Mfr. Part # :
PTN78020AAZ
Description
DC DC CONVERTER -15 TO -3V
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PTN78020AAZ PDF
In Stock
979
PTN78020AAZ Tech Specifications
SeriesPTN78020A (25W)
PackageTray
Part StatusActive
TypeNon-Isolated PoL Module
Number of Outputs1
Voltage - Input (Min)9V
Voltage - Input (Max)29V
Voltage - Output 1-15 ~ -3V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)4A
Power (Watts)-
Voltage - Isolation-
ApplicationsITE (Commercial)
FeaturesOCP, OTP, UVLO
Operating Temperature-40°C ~ 85°C
Efficiency87%
Mounting TypeSurface Mount
Package / Case7-SMD Module
Size / Dimension1.50" L x 0.87" W x 0.38" H (38.1mm x 22.1mm x 9.7mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply PTN78020AAZ, use the request quote form to request PTN78020AAZ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PTN78020AAZ. The price and lead time for PTN78020AAZ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PTN78020AAZ. We look forward to working with you to establish long-term relations of cooperation.
