PT5109M

Enlarger

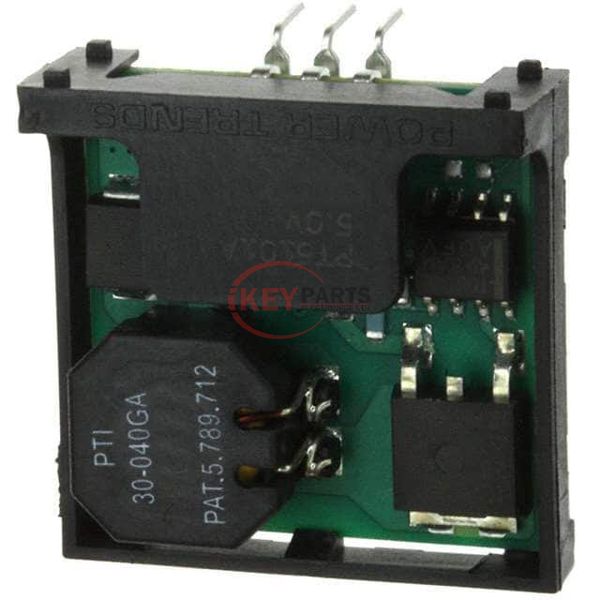

Lmages are for reference only See Product Specitications

Rochester Electronics PT5109M

Manufacturer :
Rochester Electronics
Mfr. Part # :
PT5109M
Description
SWITCHING REGLTR, VOLTAGE-MODE
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PT5109M PDF
In Stock
159
PT5109M Tech Specifications
SeriesPT5100
PackageTray
Part StatusObsolete
TypeLinear Regulator Replacement
Number of Outputs1
Voltage - Input (Min)9.6V
Voltage - Input (Max)38V
Voltage - Output 15.6V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)1A
Power (Watts)5 W
Voltage - Isolation-
ApplicationsITE (Commercial)
FeaturesOCP, OTP
Operating Temperature-40°C ~ 85°C
Efficiency90%
Mounting TypeThrough Hole, Right Angle
Package / Case3-SIP Module
Size / Dimension1.02" L x 1.00" W x 0.38" H (25.9mm x 25.4mm x 9.7mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply PT5109M, use the request quote form to request PT5109M pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PT5109M. The price and lead time for PT5109M depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PT5109M. We look forward to working with you to establish long-term relations of cooperation.
