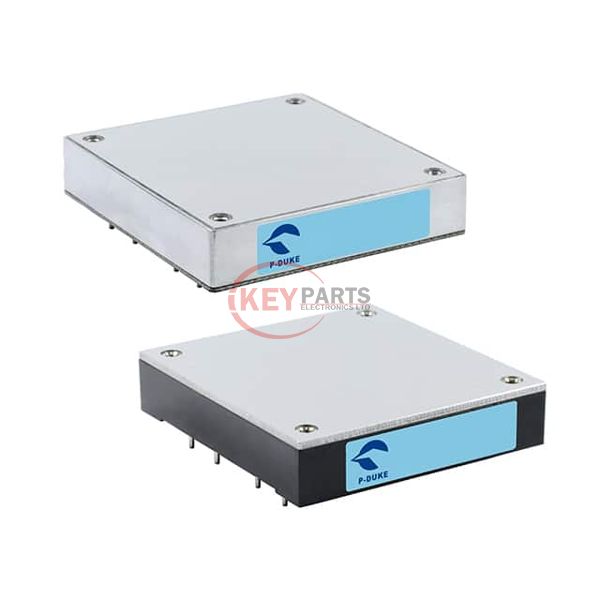

HAE100-24S05

Enlarger

Lmages are for reference only See Product Specitications

P-Duke Technology, Inc. HAE100-24S05

Manufacturer :
P-Duke Technology, Inc.
Mfr. Part # :
HAE100-24S05
Description
ISOLATED/100W /VOUT:5
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
HAE100-24S05 PDF
In Stock
238
HAE100-24S05 Tech Specifications
SeriesHAE100 (100W)
PackageBox
Part StatusActive
TypeIsolated Module
Number of Outputs1
Voltage - Input (Min)18V
Voltage - Input (Max)36V
Voltage - Output 15V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)20A
Power (Watts)100 W
Voltage - Isolation3 kV
ApplicationsITE (Commercial)
FeaturesAdjustable Output, Remote On/Off, Remote Sense
Operating Temperature-40°C ~ 105°C (With Derating)
Efficiency93%
Mounting TypeThrough Hole
Package / CaseHalf Brick
Size / Dimension2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device PackageHalf Brick
Control FeaturesEnable, Active Low
Approval AgencyCB, CE, cURus
Standard Number60950-1
Request Quote Now
Request Quote Now

We can supply HAE100-24S05, use the request quote form to request HAE100-24S05 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HAE100-24S05. The price and lead time for HAE100-24S05 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HAE100-24S05. We look forward to working with you to establish long-term relations of cooperation.
