PCN1-S12-D15-M

Enlarger

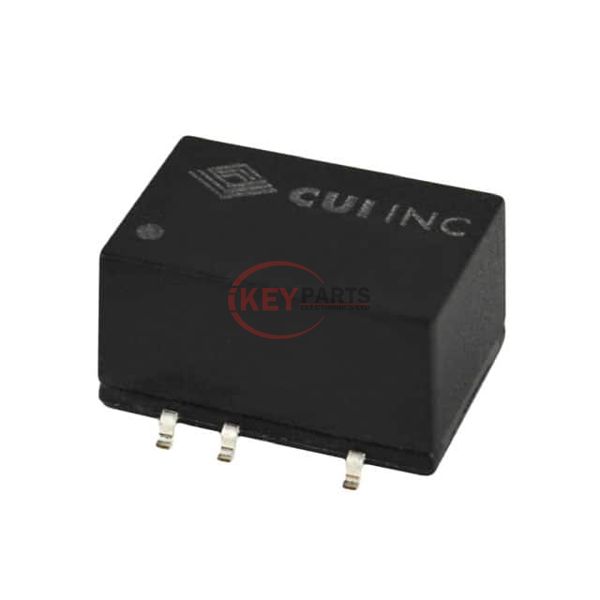

Lmages are for reference only See Product Specitications

CUI Inc. PCN1-S12-D15-M

Manufacturer :
CUI Inc.
Mfr. Part # :
PCN1-S12-D15-M
Description
DC DC CONVERTER +/-15V 1W
Catalog
DC DC Converters
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PCN1-S12-D15-M PDF
In Stock
536
PCN1-S12-D15-M Tech Specifications
SeriesPCN1-M (1W)
PackageTape & Reel (TR)
Part StatusNot For New Designs
TypeIsolated Module
Number of Outputs2
Voltage - Input (Min)10.8V
Voltage - Input (Max)13.2V
Voltage - Output 115V
Voltage - Output 2-15V
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)33mA, 33mA
Power (Watts)1 W
Voltage - Isolation1.5 kV
ApplicationsITE (Commercial)
FeaturesSCP
Operating Temperature-40°C ~ 100°C
Efficiency81%
Mounting TypeSurface Mount
Package / Case10-SMD Module, 5 Leads
Size / Dimension0.64" L x 0.39" W x 0.29" H (16.2mm x 9.8mm x 7.4mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
Request Quote Now
Request Quote Now

We can supply PCN1-S12-D15-M, use the request quote form to request PCN1-S12-D15-M pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PCN1-S12-D15-M. The price and lead time for PCN1-S12-D15-M depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PCN1-S12-D15-M. We look forward to working with you to establish long-term relations of cooperation.
