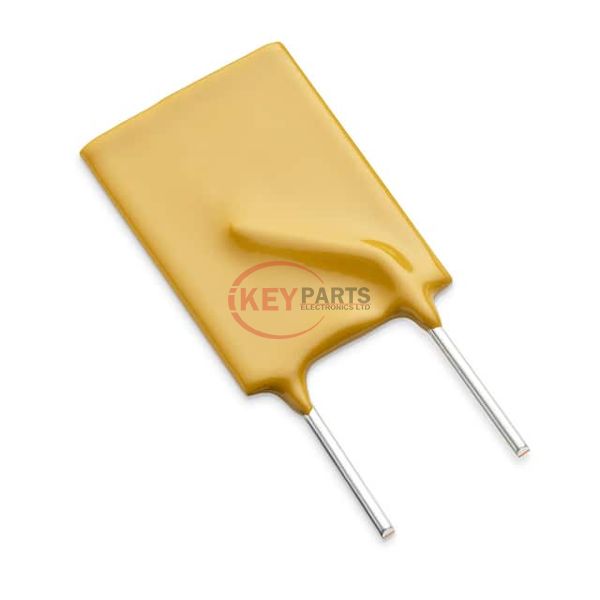

AHRL1200

Enlarger

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse AHRL1200

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
AHRL1200
Description
PTC RESET FUSE 12A 16V RAD
Catalog
PTC Resettable Fuses
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AHRL1200 PDF
AHRL1200 Tech Specifications
SeriesPolySwitch®, AHRL
PackageBulk
Part StatusActive
TypePolymeric
Voltage - Max16V
Current - Max100 A
Current - Hold (Ih) (Max)12 A
Current - Trip (It)24 A
Time to Trip12.5 s
Resistance - Initial (Ri) (Min)3.5 mOhms
Resistance - Post Trip (R1) (Max)5.8 mOhms
Resistance - 25°C (Typ)-
Operating Temperature-40°C ~ 125°C
RatingsAEC-Q200
Mounting TypeThrough Hole
Package / CaseRadial, Disc
Size / Dimension0.685" L x 0.142" W (17.40mm x 3.60mm)
Height - Seated (Max)0.921" (23.40mm)
Thickness (Max)-
Lead Spacing0.400" (10.15mm)
Request Quote Now
Request Quote Now

We can supply AHRL1200, use the request quote form to request AHRL1200 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AHRL1200. The price and lead time for AHRL1200 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AHRL1200. We look forward to working with you to establish long-term relations of cooperation.
