PTCCL09H471DBE

Enlarger

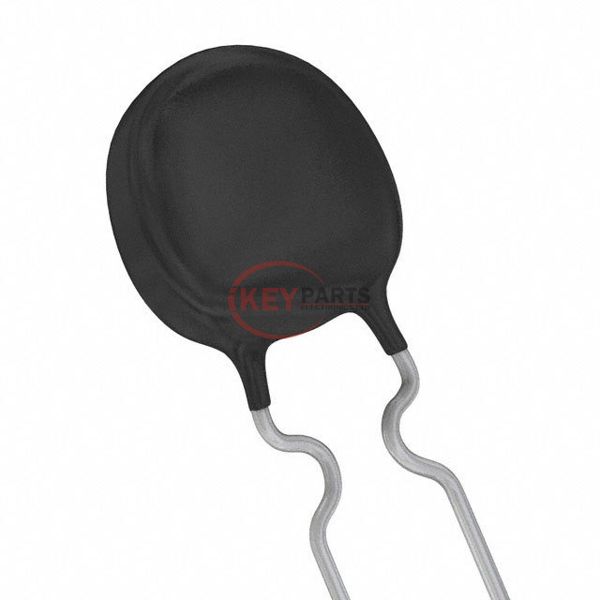

Lmages are for reference only See Product Specitications

Vishay BC Components/Beyshlag/Draloric PTCCL09H471DBE

Manufacturer :
Vishay BC Components/Beyshlag/Draloric
Mfr. Part # :
PTCCL09H471DBE
Description
PTC RESET FUSE 30V 470MA RADIAL
Catalog
PTC Resettable Fuses
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PTCCL09H471DBE PDF
PTCCL09H471DBE Tech Specifications
SeriesPTCCL
PackageBulk
Part StatusActive
TypeCeramic
Voltage - Max30V
Current - Max5 A
Current - Hold (Ih) (Max)470 mA
Current - Trip (It)705 mA
Time to Trip-
Resistance - Initial (Ri) (Min)-
Resistance - Post Trip (R1) (Max)-
Resistance - 25°C (Typ)2.5 Ohms
Operating Temperature-40°C ~ 85°C
Ratings-
Mounting TypeThrough Hole
Package / CaseRadial, Disc
Size / Dimension0.335" Dia x 0.157" T (8.50mm x 4.00mm)
Height - Seated (Max)0.532" (13.50mm)
Thickness (Max)-
Lead Spacing0.197" (5.00mm)
Request Quote Now
Request Quote Now

We can supply PTCCL09H471DBE, use the request quote form to request PTCCL09H471DBE pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PTCCL09H471DBE. The price and lead time for PTCCL09H471DBE depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PTCCL09H471DBE. We look forward to working with you to establish long-term relations of cooperation.
