MPTS0805L0509

Enlarger

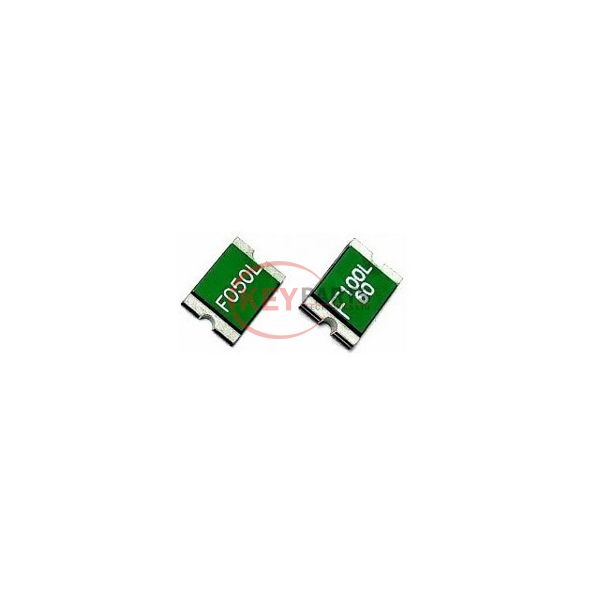

Lmages are for reference only See Product Specitications

Meritek MPTS0805L0509

Manufacturer :
Meritek
Mfr. Part # :
MPTS0805L0509
Description
PTC RESET FUSE 9V 0.5A 0805
Catalog
PTC Resettable Fuses
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MPTS0805L0509 PDF
MPTS0805L0509 Tech Specifications
SeriesMPTS
PackageTape & Reel (TR)
Part StatusActive
TypePolymeric
Voltage - Max9V
Current - Max100 A
Current - Hold (Ih) (Max)500 mA
Current - Trip (It)1 A
Time to Trip100 ms
Resistance - Initial (Ri) (Min)150 mOhms
Resistance - Post Trip (R1) (Max)850 mOhms
Resistance - 25°C (Typ)-
Operating Temperature-40°C ~ 85°C
Ratings-
Mounting TypeSurface Mount
Package / Case0805 (2012 Metric)
Size / Dimension0.087" L x 0.053" W (2.20mm x 1.35mm)
Height - Seated (Max)-
Thickness (Max)0.049" (1.25mm)
Lead Spacing-
Request Quote Now
Request Quote Now

We can supply MPTS0805L0509, use the request quote form to request MPTS0805L0509 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MPTS0805L0509. The price and lead time for MPTS0805L0509 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MPTS0805L0509. We look forward to working with you to establish long-term relations of cooperation.
