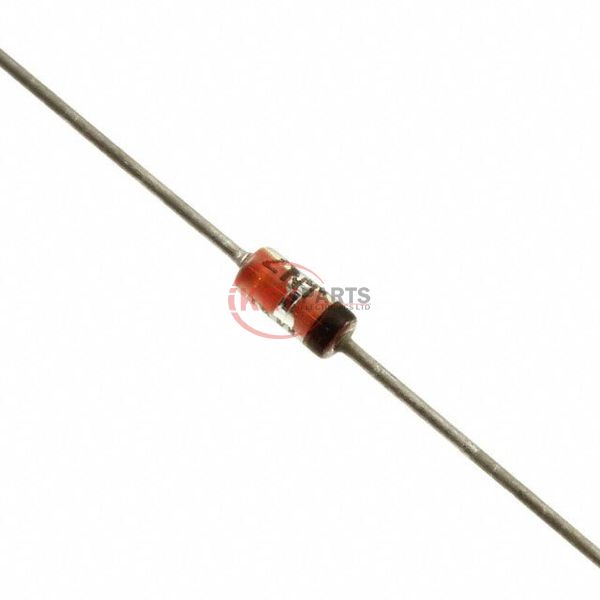

1N4109

Enlarger

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology 1N4109

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
1N4109
Description
DIODE ZENER 15V 500MW DO204AH
Catalog
Diodes - Zener - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
1N4109 PDF
In Stock
335
1N4109 Tech Specifications
Series-
PackageBulk
Part StatusActive
Voltage - Zener (Nom) (Vz)15 V
Tolerance±5%
Power - Max500 mW
Impedance (Max) (Zzt)100 Ohms
Current - Reverse Leakage @ Vr50 nA @ 11.4 V
Voltage - Forward (Vf) (Max) @ If1.1 V @ 200 mA
Operating Temperature-65°C ~ 175°C
Mounting TypeThrough Hole
Package / CaseDO-204AH, DO-35, Axial
Supplier Device PackageDO-204AH (DO-35 Glass)
Request Quote Now
Request Quote Now

We can supply 1N4109, use the request quote form to request 1N4109 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1N4109. The price and lead time for 1N4109 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1N4109. We look forward to working with you to establish long-term relations of cooperation.
