PG35S-D48-HHC2

Enlarger

Lmages are for reference only See Product Specitications

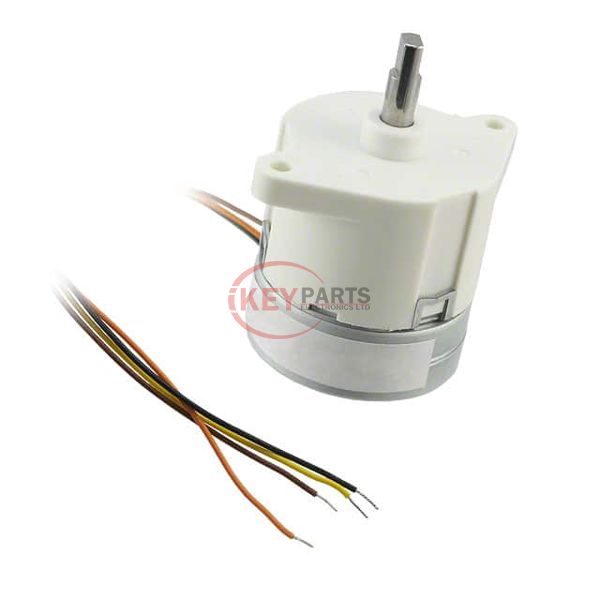

NMB Technologies Corp. PG35S-D48-HHC2

Manufacturer :
NMB Technologies Corp.
Mfr. Part # :
PG35S-D48-HHC2
Description
STEP MOTOR PM GEARED BIPOLAR 24V
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PG35S-D48-HHC2 PDF
PG35S-D48-HHC2 Tech Specifications
SeriesPG
PackageBulk
Part StatusActive
TypePermanent Magnet Gear Motor
Coil TypeBipolar
Voltage - Rated24VDC
Current Rating (Amps)250 mA
Steps per Revolution1698
Step Angle0.212°
Accuracy-
Torque - Holding (oz-in / mNm)99.1 / 700
Size / DimensionRound - 1.378" Dia (35.00mm)
NEMA Frame Size-
Diameter - Shaft0.197" (5.00mm)
Length - Shaft and Bearing0.709" (18.00mm)
Mounting Hole Spacing1.650" (42.00mm)
Termination StyleWire Leads
Operating Temperature-
Coil Resistance28 Ohms
FeaturesDouble Flatted Shaft
Request Quote Now
Request Quote Now

We can supply PG35S-D48-HHC2, use the request quote form to request PG35S-D48-HHC2 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PG35S-D48-HHC2. The price and lead time for PG35S-D48-HHC2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PG35S-D48-HHC2. We look forward to working with you to establish long-term relations of cooperation.
