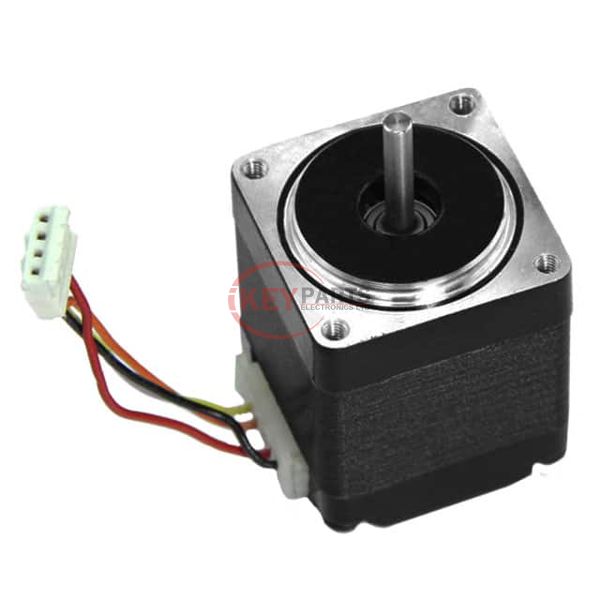

316020002

Enlarger

Lmages are for reference only See Product Specitications

Seeed 316020002

Manufacturer :
Seeed
Mfr. Part # :
316020002
Description
STEP MOTOR HYBRD BIPOLAR 12-24V
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
316020002 PDF
316020002 Tech Specifications
Series-
PackageBulk
Part StatusActive
TypeHybrid
Coil TypeBipolar
Voltage - Rated12 ~ 24VDC
Current Rating (Amps)450 mA
Steps per Revolution200
Step Angle1.8°
Accuracy-
Torque - Holding (oz-in / mNm)8.33 / 58.84
Size / DimensionSquare - 1.110" x 1.110" (28.20mm x 28.20mm)
NEMA Frame Size11
Diameter - Shaft0.197" (5.00mm)
Length - Shaft and Bearing-
Mounting Hole Spacing1.281" (32.53mm)
Termination StyleWire Leads with Connector
Operating Temperature-
Coil Resistance11 Ohms
FeaturesRound Shaft
Request Quote Now
Request Quote Now

We can supply 316020002, use the request quote form to request 316020002 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 316020002. The price and lead time for 316020002 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 316020002. We look forward to working with you to establish long-term relations of cooperation.
