PD57-2-1076

Enlarger

Lmages are for reference only See Product Specitications

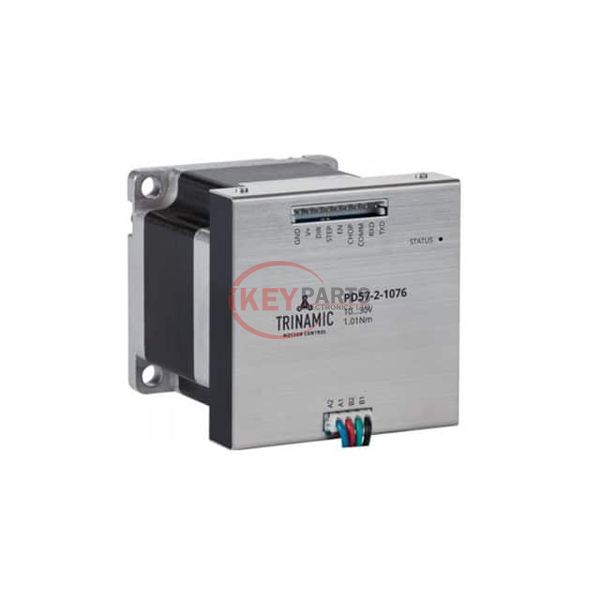

TRINAMIC Motion Control GmbH PD57-2-1076

Manufacturer :
TRINAMIC Motion Control GmbH
Mfr. Part # :
PD57-2-1076
Description
STEPPER MOTOR HYBRID BIPOLAR 24V
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PD57-2-1076 PDF
PD57-2-1076 Tech Specifications
SeriesPANdrive™
PackageBulk
Part StatusActive
TypeHybrid
Coil TypeBipolar
Voltage - Rated2.3VDC
Current Rating (Amps)2.8 A
Steps per Revolution200
Step Angle1.8°
Accuracy±5%
Torque - Holding (oz-in / mNm)143.03 / 1010
Size / DimensionSquare - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size23
Diameter - Shaft-
Length - Shaft and Bearing-
Mounting Hole Spacing-
Termination StyleWire Leads with Connector
Operating Temperature-20°C ~ 50°C
Coil Resistance0.8 Ohms
FeaturesIntegrated Controller, Flatted Shaft
Request Quote Now
Request Quote Now

We can supply PD57-2-1076, use the request quote form to request PD57-2-1076 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PD57-2-1076. The price and lead time for PD57-2-1076 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PD57-2-1076. We look forward to working with you to establish long-term relations of cooperation.
