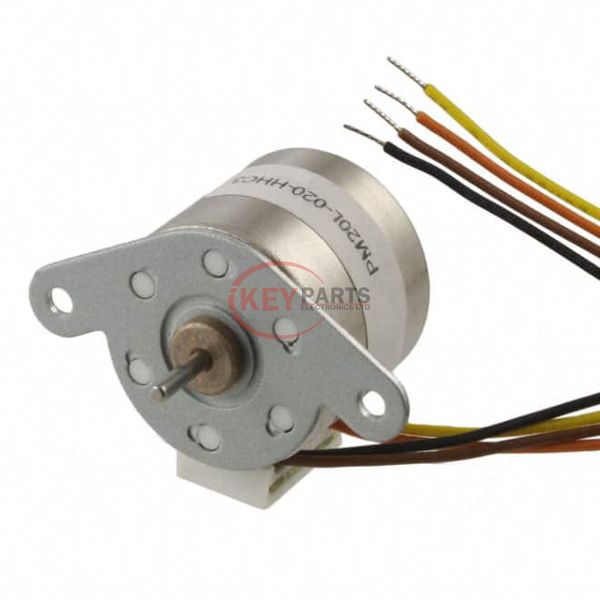

Series | PM | |
Package | Bulk | |
Part Status | Active | |
Type | Permanent Magnet | |
Coil Type | Bipolar | |
Voltage - Rated | 24VDC | |
Current Rating (Amps) | 400 mA | |
Steps per Revolution | 20 | |
Step Angle | 18° | |
Accuracy | - | |
Torque - Holding (oz-in / mNm) | 2.1 / 15 | |
Size / Dimension | Round - 0.787" Dia (20.00mm) | |
NEMA Frame Size | - | |
Diameter - Shaft | 0.059" (1.50mm) | |
Length - Shaft and Bearing | 0.315" (8.00mm) | |
Mounting Hole Spacing | 1.100" (28.00mm) | |
Termination Style | Wire Leads | |
Operating Temperature | - | |
Coil Resistance | 13 Ohms | |
Features | Round Shaft |
We can supply PM20L-020-HHC3, use the request quote form to request PM20L-020-HHC3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PM20L-020-HHC3. The price and lead time for PM20L-020-HHC3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PM20L-020-HHC3. We look forward to working with you to establish long-term relations of cooperation.
![]() |
