PD57-2-1260-TMCL

Enlarger

Lmages are for reference only See Product Specitications

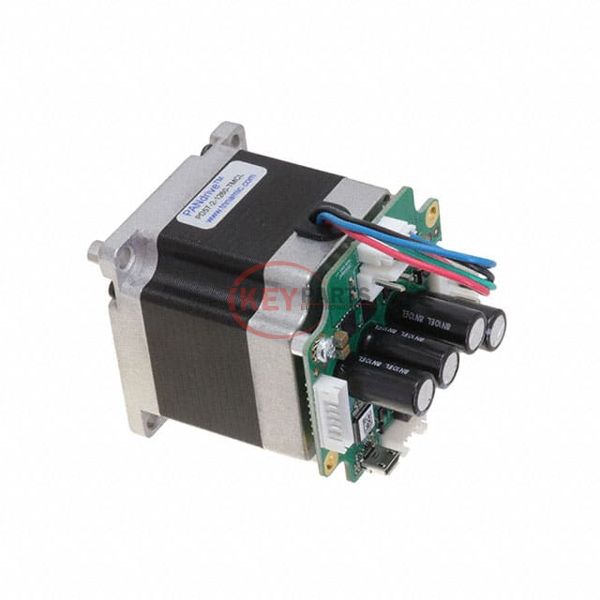

TRINAMIC Motion Control GmbH PD57-2-1260-TMCL

Manufacturer :
TRINAMIC Motion Control GmbH
Mfr. Part # :
PD57-2-1260-TMCL
Description
PANDRIVE NEMA23, 48V, 1.01NM
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PD57-2-1260-TMCL PDF
PD57-2-1260-TMCL Tech Specifications
SeriesPANdrive™
PackageBulk
Part StatusActive
TypeHybrid
Coil TypeBipolar
Voltage - Rated2.3VDC
Current Rating (Amps)2.8 A
Steps per Revolution200
Step Angle1.8°
Accuracy-
Torque - Holding (oz-in / mNm)143.03 / 1010
Size / DimensionSquare - 2.362" x 2.362" (60.00mm x 60.00mm)
NEMA Frame Size24
Diameter - Shaft0.250" (6.35mm)
Length - Shaft and Bearing0.945" (24.00mm)
Mounting Hole Spacing1.856" (47.14mm)
Termination StyleWire Leads with Connector
Operating Temperature-20°C ~ 50°C
Coil Resistance-
FeaturesIntegrated Controller, Flatted Shaft
Request Quote Now
Request Quote Now

We can supply PD57-2-1260-TMCL, use the request quote form to request PD57-2-1260-TMCL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PD57-2-1260-TMCL. The price and lead time for PD57-2-1260-TMCL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PD57-2-1260-TMCL. We look forward to working with you to establish long-term relations of cooperation.
