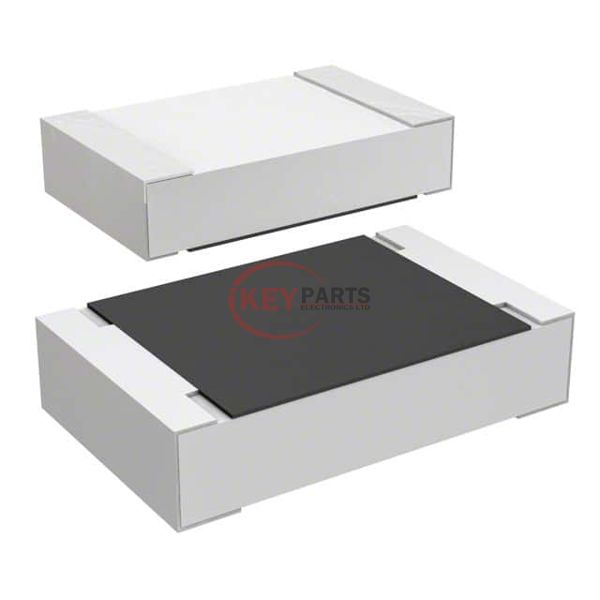

RCWL0805R560JNEA

Enlarger

Lmages are for reference only See Product Specitications

Vishay / Dale RCWL0805R560JNEA

Manufacturer :
Vishay / Dale
Mfr. Part # :
RCWL0805R560JNEA
Description
RES 0.56 OHM 5% 1/8W 0805
Catalog
Chip Resistors-Surface Mount
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RCWL0805R560JNEA PDF
In Stock
936
RCWL0805R560JNEA Tech Specifications
SeriesRCWL
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Resistance560 mOhms
Tolerance±5%
Power (Watts)0.125W, 1/8W
CompositionThick Film
FeaturesAutomotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient±200ppm/°C
Operating Temperature-55°C ~ 155°C
Package / Case0805 (2012 Metric)
Supplier Device Package0805
RatingsAEC-Q200
Size / Dimension0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)0.020" (0.50mm)
Number of Terminations2
Failure Rate-
Request Quote Now
Request Quote Now

We can supply RCWL0805R560JNEA, use the request quote form to request RCWL0805R560JNEA pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RCWL0805R560JNEA. The price and lead time for RCWL0805R560JNEA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RCWL0805R560JNEA. We look forward to working with you to establish long-term relations of cooperation.
