TNPW0805309RBHEA

Enlarger

Lmages are for reference only See Product Specitications

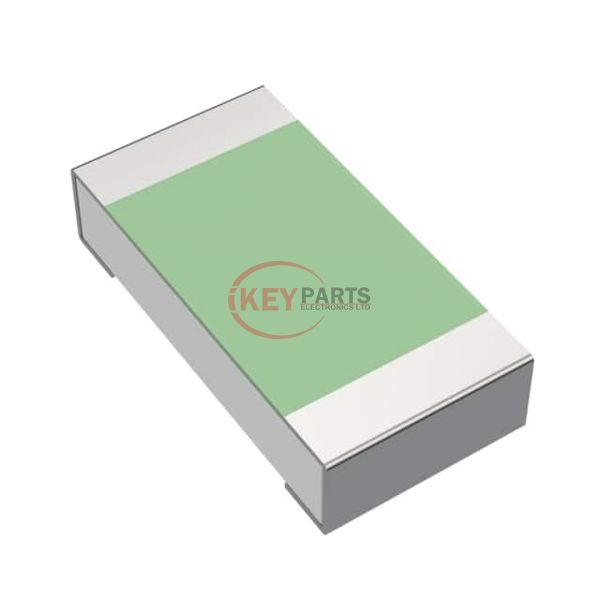

Vishay / Dale TNPW0805309RBHEA

Manufacturer :
Vishay / Dale
Mfr. Part # :
TNPW0805309RBHEA
Description
RES 309 OHM 0.1% 1/5W 0805
Catalog
Chip Resistors-Surface Mount
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TNPW0805309RBHEA PDF
In Stock
594
TNPW0805309RBHEA Tech Specifications
SeriesTNPW e3
PackageTape & Reel (TR)
Part StatusActive
Resistance309 Ohms
Tolerance±0.1%
Power (Watts)0.2W, 1/5W
CompositionThin Film
FeaturesAnti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient±50ppm/°C
Operating Temperature-55°C ~ 155°C
Package / Case0805 (2012 Metric)
Supplier Device Package0805
RatingsAEC-Q200
Size / Dimension0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)0.022" (0.55mm)
Number of Terminations2
Failure Rate-
Request Quote Now
Request Quote Now

We can supply TNPW0805309RBHEA, use the request quote form to request TNPW0805309RBHEA pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TNPW0805309RBHEA. The price and lead time for TNPW0805309RBHEA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TNPW0805309RBHEA. We look forward to working with you to establish long-term relations of cooperation.
