RCS0603560RJNEA

Enlarger

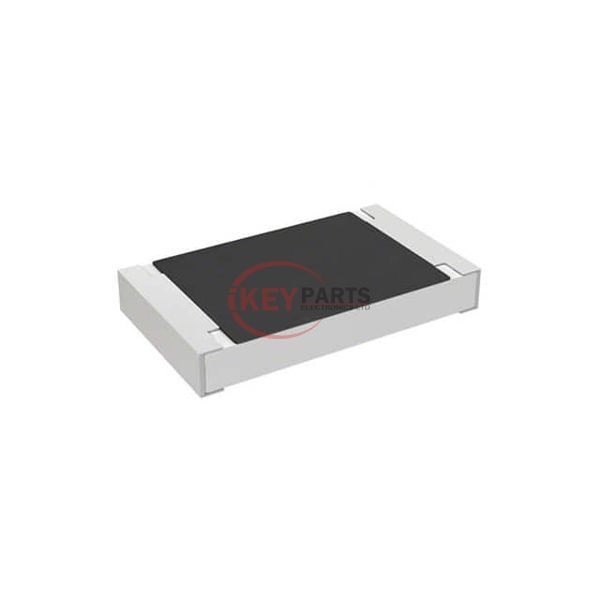

Lmages are for reference only See Product Specitications

Vishay / Dale RCS0603560RJNEA

Manufacturer :
Vishay / Dale
Mfr. Part # :
RCS0603560RJNEA
Description
RES SMD 560 OHM 5% 1/4W 0603
Catalog
Chip Resistors-Surface Mount
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RCS0603560RJNEA PDF
In Stock
4339
RCS0603560RJNEA Tech Specifications
SeriesRCS e3
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Resistance560 Ohms
Tolerance±5%
Power (Watts)0.25W, 1/4W
CompositionThick Film
FeaturesAutomotive AEC-Q200, Pulse Withstanding
Temperature Coefficient±200ppm/°C
Operating Temperature-55°C ~ 155°C
Package / Case0603 (1608 Metric)
Supplier Device Package0603
RatingsAEC-Q200
Size / Dimension0.061" L x 0.033" W (1.55mm x 0.85mm)
Height - Seated (Max)0.020" (0.50mm)
Number of Terminations2
Failure Rate-
Request Quote Now
Request Quote Now

We can supply RCS0603560RJNEA, use the request quote form to request RCS0603560RJNEA pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RCS0603560RJNEA. The price and lead time for RCS0603560RJNEA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RCS0603560RJNEA. We look forward to working with you to establish long-term relations of cooperation.
