PTN0805E22R1BST1

Enlarger

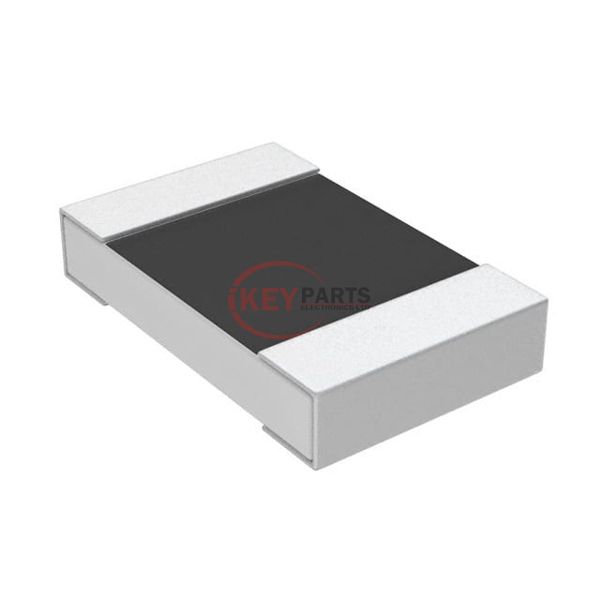

Lmages are for reference only See Product Specitications

Vishay PTN0805E22R1BST1

Manufacturer :
Vishay
Mfr. Part # :
PTN0805E22R1BST1
Description
RES 22.1 OHM 0.1% 1/5W 0805
Catalog
Chip Resistors-Surface Mount
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PTN0805E22R1BST1 PDF
PTN0805E22R1BST1 Tech Specifications
SeriesPTN
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Resistance22.1 Ohms
Tolerance±0.1%
Power (Watts)0.2W, 1/5W
CompositionThin Film
FeaturesAnti-Sulfur, Moisture Resistant, Non-Inductive
Temperature Coefficient±25ppm/°C
Operating Temperature-55°C ~ 155°C
Package / Case0805 (2012 Metric)
Supplier Device Package0805
Ratings-
Size / Dimension0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Max)0.033" (0.84mm)
Number of Terminations2
Failure Rate-
Request Quote Now
Request Quote Now

We can supply PTN0805E22R1BST1, use the request quote form to request PTN0805E22R1BST1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PTN0805E22R1BST1. The price and lead time for PTN0805E22R1BST1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PTN0805E22R1BST1. We look forward to working with you to establish long-term relations of cooperation.
