CSR0805JTR560

Enlarger

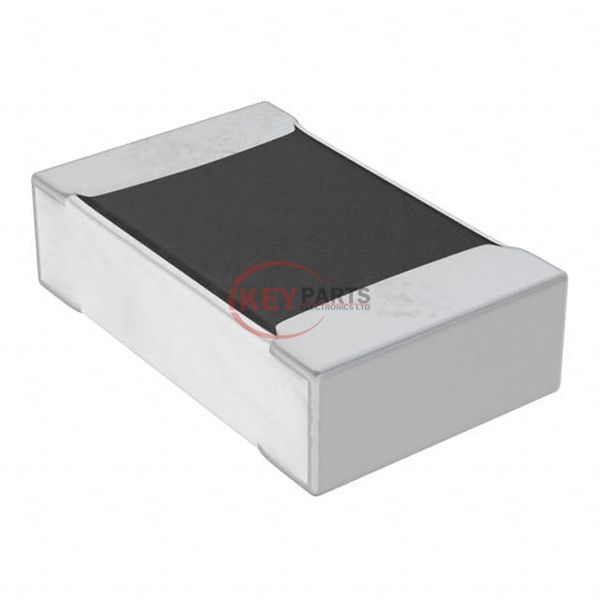

Lmages are for reference only See Product Specitications

Stackpole Electronics, Inc. CSR0805JTR560

Manufacturer :
Stackpole Electronics, Inc.
Mfr. Part # :
CSR0805JTR560
Description
RES 0.56 OHM 5% 1/4W 0805
Catalog
Chip Resistors-Surface Mount
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CSR0805JTR560 PDF
CSR0805JTR560 Tech Specifications
SeriesCSR
PackageTape & Reel (TR)
Part StatusActive
Resistance560 mOhms
Tolerance±5%
Power (Watts)0.25W, 1/4W
CompositionThick Film
FeaturesCurrent Sense
Temperature Coefficient±200ppm/°C
Operating Temperature-55°C ~ 155°C
Package / Case0805 (2012 Metric)
Supplier Device Package0805
Ratings-
Size / Dimension0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)0.026" (0.65mm)
Number of Terminations2
Failure Rate-
Request Quote Now
Request Quote Now

We can supply CSR0805JTR560, use the request quote form to request CSR0805JTR560 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSR0805JTR560. The price and lead time for CSR0805JTR560 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSR0805JTR560. We look forward to working with you to establish long-term relations of cooperation.
