TNPU0603536RAZEN00

Enlarger

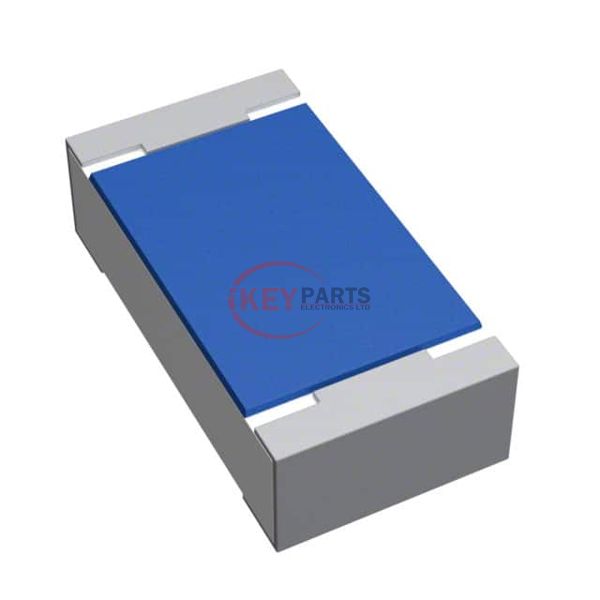

Lmages are for reference only See Product Specitications

Vishay / Dale TNPU0603536RAZEN00

Manufacturer :
Vishay / Dale
Mfr. Part # :
TNPU0603536RAZEN00
Description
RES SMD 536 OHM 0.05% 1/10W 0603
Catalog
Chip Resistors-Surface Mount
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TNPU0603536RAZEN00 PDF
In Stock
614
TNPU0603536RAZEN00 Tech Specifications
SeriesTNPU e3
PackageTape & Reel (TR)
Part StatusActive
Resistance536 Ohms
Tolerance±0.05%
Power (Watts)0.1W, 1/10W
CompositionThin Film
FeaturesAnti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient±5ppm/°C
Operating Temperature-55°C ~ 125°C
Package / Case0603 (1608 Metric)
Supplier Device Package0603
RatingsAEC-Q200
Size / Dimension0.063" L x 0.033" W (1.60mm x 0.85mm)
Height - Seated (Max)0.022" (0.55mm)
Number of Terminations2
Failure Rate-
Request Quote Now
Request Quote Now

We can supply TNPU0603536RAZEN00, use the request quote form to request TNPU0603536RAZEN00 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TNPU0603536RAZEN00. The price and lead time for TNPU0603536RAZEN00 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TNPU0603536RAZEN00. We look forward to working with you to establish long-term relations of cooperation.
