AQ3522-01LTG

Enlarger

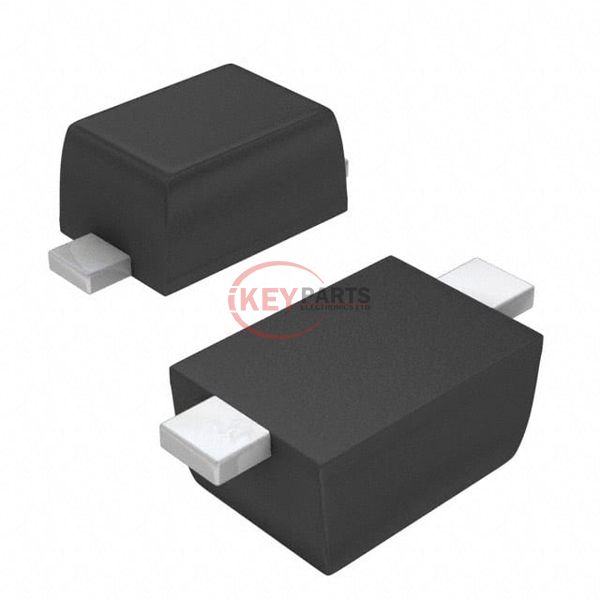

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse AQ3522-01LTG

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
AQ3522-01LTG
Description
1CH 0.15PF 22KV 5V BI TVS DIODE
Catalog
TVS - Diodes
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AQ3522-01LTG PDF
In Stock
1775
AQ3522-01LTG Tech Specifications
SeriesAutomotive, AEC-Q101, AQ3522, SPA®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
TypeZener
Unidirectional Channels-
Bidirectional Channels1
Voltage - Reverse Standoff (Typ)5V (Max)
Voltage - Breakdown (Min)8.5V
Voltage - Clamping (Max) @ Ipp18V
Current - Peak Pulse (10/1000µs)2.5A (8/20µs)
Power - Peak Pulse-
Power Line ProtectionNo
ApplicationsAutomotive
Capacitance @ Frequency0.15pF @ 3GHz
Operating Temperature-45°C ~ 150°C (TA)
Mounting TypeSurface Mount
Package / CaseSC-79, SOD-523
Supplier Device PackageSOD-523
Request Quote Now
Request Quote Now

We can supply AQ3522-01LTG, use the request quote form to request AQ3522-01LTG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AQ3522-01LTG. The price and lead time for AQ3522-01LTG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AQ3522-01LTG. We look forward to working with you to establish long-term relations of cooperation.
